MP-PP-SERIES
Base Product

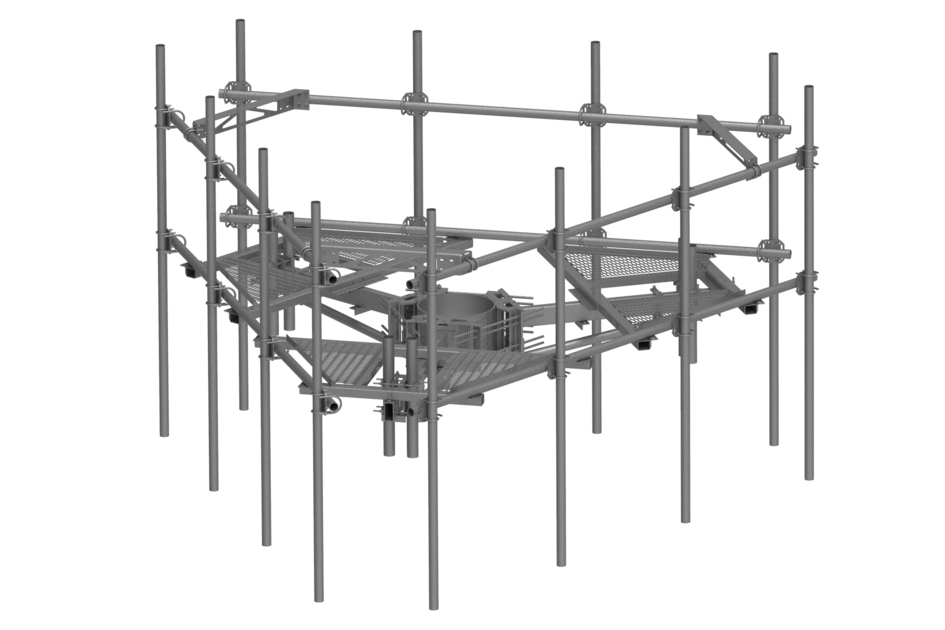

MP-PP Series 3-Sector PIM Optimized Monopole Platform Kits
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
The MP-PP Series PIM Optimized Monopole Platforms provide increased antenna-to-antenna spacing and enable Radio mounting on a custom Adjustable Triangle to mitigate PIM around antennas. Kits include a heavy duty ring mount for monopoles ranging from 12” to 45” along with a top rail and work platform for installers. Offerings include 13ft, and 15ft face widths.
- PIM Optimized design with wider face & custom triangle for Radio mounting
- Designed for 12” to 45” Monopoles
- Adjustable Triangle to enable same stand-off distance for Monopoles 12" to 45"
- Available as Base Kit or Full Kit with Antenna Pipes
- 3 Sector Solutions
- PIM Optimized design with wider face & custom triangle for Radio mounting
- Designed for 12” to 45” Monopoles
- Adjustable Triangle to enable same stand-off distance for Monopoles 12" to 45"
- Available as Base Kit or Full Kit with Antenna Pipes
- 3 Sector Solutions
Specifications
Product Classification
| Product Type | Monopole platform kit |
General Specifications
| Mounting | Monopole, 304.8–1143 mm (12–45 in) OD |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating Test Method | TIA/EIA-222 |
Product Classification
| Product Type | Monopole platform kit |
General Specifications
| Mounting | Monopole, 304.8–1143 mm (12–45 in) OD |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating Test Method | TIA/EIA-222 |
