MDL-CS-8R

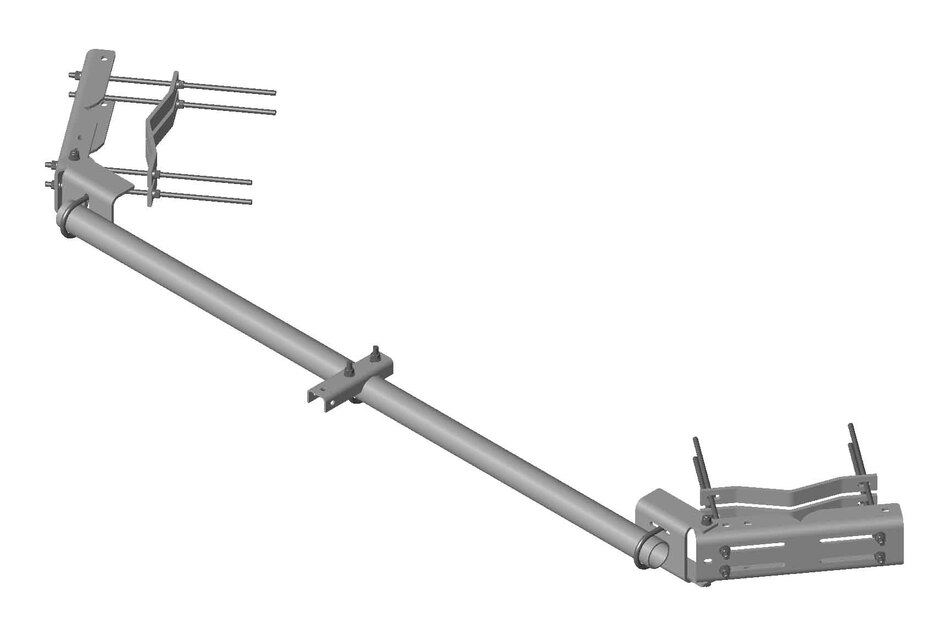

Tower Face Mounted Microwave Antenna Channel Support Kit, 96 in, includes pipe
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Microwave strut support

General Specifications

Mounting Straight or tapered legs up to 406.4 mm (16 in) OD
Pipe, quantity 1
Tower Taper Non-tapered | Tapered

Dimensions

Height 152.4 mm | 6 in
Width 2438.4 mm | 96 in
Length 203.2 mm | 8 in
Pipe Length 2438.4 mm | 96 in
Mounting Diameter, maximum 406.4 mm | 16 in
Mounting Diameter, minimum 50.8 mm | 2 in
Pipe Outer Diameter 88.9 mm | 3.5 in

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For Specifications, please contact steelproducts@commscope.com or call 800-255-1479

Packaging and Weights

Included Clamps | Attachment hardware | Pipes
Packaging quantity 1
Weight, net 88.5 kg | 195.109 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Product Type Microwave strut support

General Specifications

Mounting Straight or tapered legs up to 406.4 mm (16 in) OD
Pipe, quantity 1
Tower Taper Non-tapered | Tapered

Dimensions

Height 152.4 mm | 6 in
Width 2438.4 mm | 96 in
Length 203.2 mm | 8 in
Pipe Length 2438.4 mm | 96 in
Mounting Diameter, maximum 406.4 mm | 16 in
Mounting Diameter, minimum 50.8 mm | 2 in
Pipe Outer Diameter 88.9 mm | 3.5 in

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For Specifications, please contact steelproducts@commscope.com or call 800-255-1479

Packaging and Weights

Included Clamps | Attachment hardware | Pipes
Packaging quantity 1
Weight, net 88.5 kg | 195.109 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
