TP-G300-B

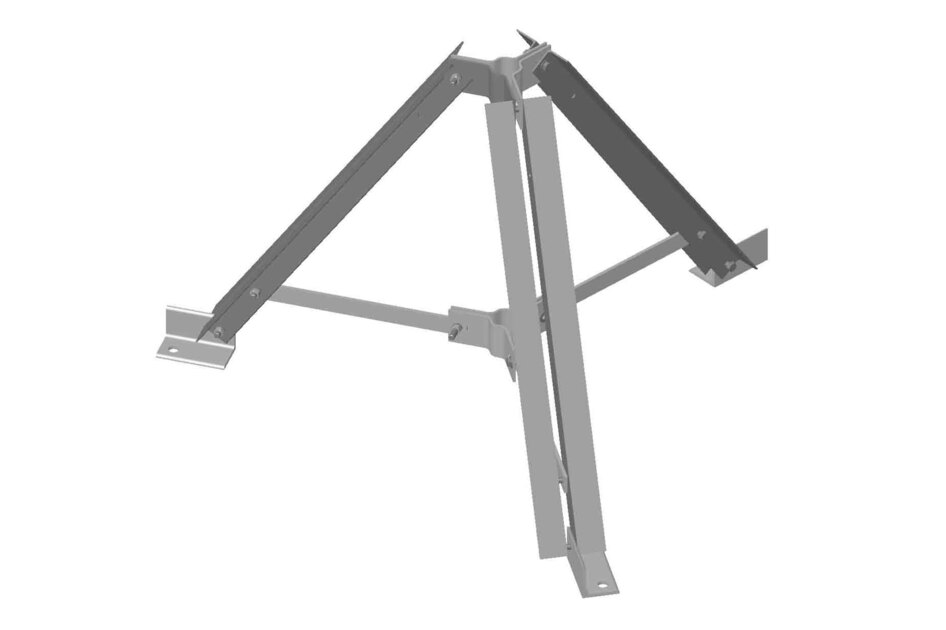

Universal Tripod Base Kit for 2-7/8 in - 3-1/2 in OD pipes
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Tripod mount

General Specifications

Mounting Non-penetrating | Surfaces
Pipe, quantity 0

Dimensions

Height 33 in | 838.2 mm
Width 60 in | 1524 mm
Length 5 ft | 1.524 m
Pipe Outer Diameter 3.5 in | 88.9 mm | 2.9 in | 73.66 mm

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating 85 mph (BWS) at 100 ft AGL using Exposure C per UBC
Wind Rating Test Method TIA/EIA-222

Packaging and Weights

Included Mount, with or without pipe
Packaging quantity 1
Weight, net 51.8 kg | 114.199 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHS ROHSCompliant
CHINA-ROHS CHINA-ROHSBelow maximum concentration value
REACH-SVHC REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Product Type Tripod mount

General Specifications

Mounting Non-penetrating | Surfaces
Pipe, quantity 0

Dimensions

Height 33 in | 838.2 mm
Width 60 in | 1524 mm
Length 5 ft | 1.524 m
Pipe Outer Diameter 3.5 in | 88.9 mm | 2.9 in | 73.66 mm

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating 85 mph (BWS) at 100 ft AGL using Exposure C per UBC
Wind Rating Test Method TIA/EIA-222

Packaging and Weights

Included Mount, with or without pipe
Packaging quantity 1
Weight, net 51.8 kg | 114.199 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHS ROHSCompliant
CHINA-ROHS CHINA-ROHSBelow maximum concentration value
REACH-SVHC REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance
