WB-EXT

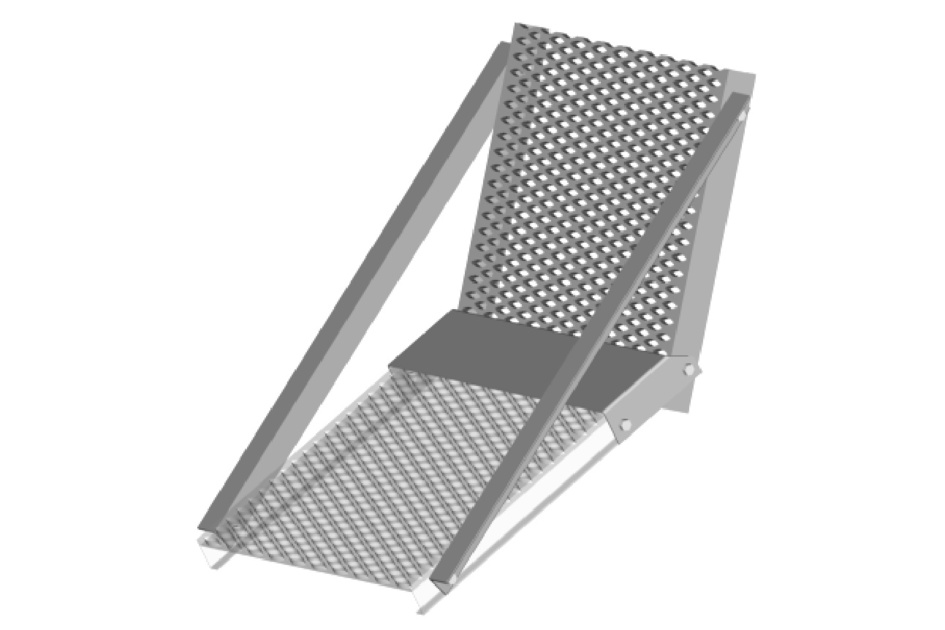

Extension Kit, safety grating
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Waveguide bridge kit

General Specifications

Application Waveguide bridge kit, 24 in
Mounting Pipe, 88.9 mm (3-1/2 in) OD

Dimensions

Height 101.6 mm | 4 in
Width 609.6 mm | 24 in
Length 609.6 mm | 24 in

Outline Drawing

Click on image to enlarge.

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Channel support bracket | Hardware
Packaging quantity 1
Weight, net 34.5 kg | 76.059 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Product Type Waveguide bridge kit

General Specifications

Application Waveguide bridge kit, 24 in
Mounting Pipe, 88.9 mm (3-1/2 in) OD

Dimensions

Height 101.6 mm | 4 in
Width 609.6 mm | 24 in
Length 609.6 mm | 24 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Channel support bracket | Hardware
Packaging quantity 1
Weight, net 34.5 kg | 76.059 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
