WB-LB12-3

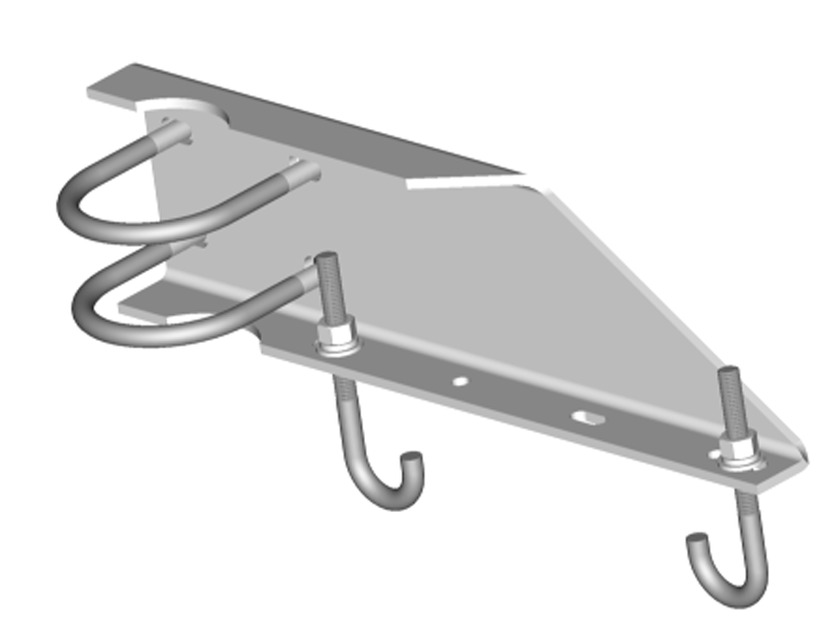

Waveguide Bridge Support Bracket, 12 in wide for 3-1/2 in OD legs
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Support bracket

General Specifications

Application Waveguide bridge kit, 12 in
Cable Runs, quantity 12
Mounting Pipe, 88.9 mm (3-1/2 in) OD

Dimensions

Height 2 in | 50.8 mm
Width 20 in | 508 mm
Length 6 in | 152.4 mm

Outline Drawing

Click on image to enlarge.

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Hardware | Brackets
Packaging quantity 1
Weight, net 5.4 kg | 11.905 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHS ROHSCompliant
CHINA-ROHS CHINA-ROHSBelow maximum concentration value
REACH-SVHC REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Product Type Support bracket

General Specifications

Application Waveguide bridge kit, 12 in
Cable Runs, quantity 12
Mounting Pipe, 88.9 mm (3-1/2 in) OD

Dimensions

Height 2 in | 50.8 mm
Width 20 in | 508 mm
Length 6 in | 152.4 mm

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Hardware | Brackets
Packaging quantity 1
Weight, net 5.4 kg | 11.905 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHSCompliant
CHINA-ROHSBelow maximum concentration value
REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance
