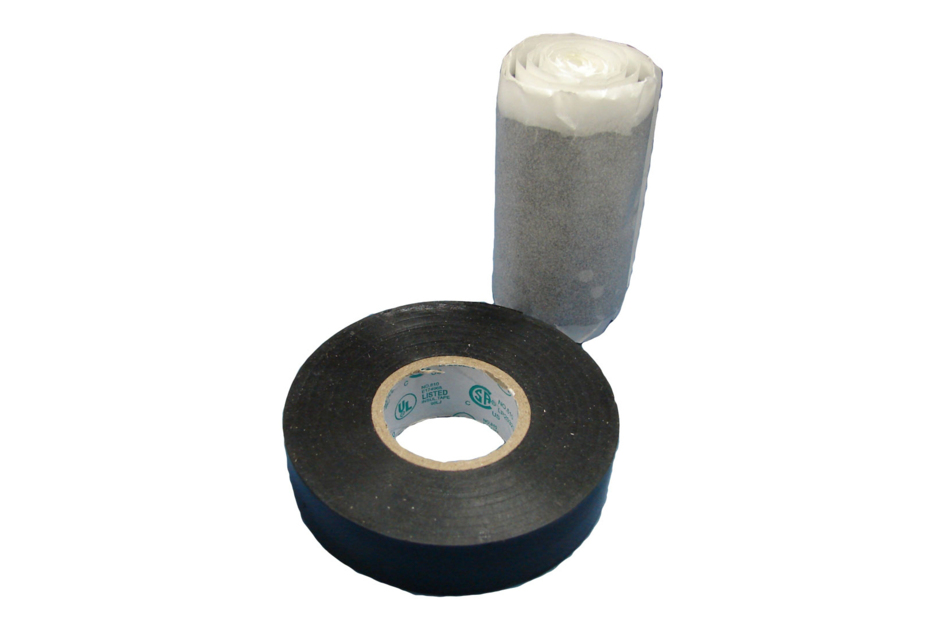

WK-CNT

Weatherproofing Kit for Connectors and Splices, includes butyl rubber and PVC tape
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Weatherproofing tape
Ordering Note CommScope® non-standard product

General Specifications

Application Provides additional moisture seal for cable connections
Applications per Kit Four 0.195 in to 0.195 in | Four 0.240 in to 0.240 in | Three 0.300 in to 0.300 in | Three 0.400 in to 0.300 in | Three 0.400 in to 0.400 in | Two 0.400 in to 0.600 in | Two 0.600 in to 0.600 in

Dimensions

Nominal Size 0.195 in | 0.240 in | 0.300 in | 0.400 in | 0.600 in

Material Specifications

Material Type Butyl rubber tape | PVC tape

Environmental Specifications

UV Resistance Test Method Butyl test method in QUV weatherometer cycle of 8 hours UV at 150 °F then 4 hours of condensation at 104 °F | PVC tape test method UL 510, ASTM D1000
UV Resistance, minimum with no degradation ≥1000 hours
Weather Resistance Test Method 04AS00-03.6.0 | MIL-STD-1344A, Method 1002

Packaging and Weights

Height, packed 165.1 mm | 6.5 in
Width, packed 50.8 mm | 2 in
Length, packed 91.44 mm | 3.6 in
Included One roll of 2-1/2 in butyl rubber tape (0.06 in thick) | One roll of 3/4 in PVC tape
Packaging quantity 1
Weight, gross 0.36 kg | 0.794 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value

Product Classification

Product Type Weatherproofing tape
Ordering Note CommScope® non-standard product

General Specifications

Application Provides additional moisture seal for cable connections
Applications per Kit Four 0.195 in to 0.195 in | Four 0.240 in to 0.240 in | Three 0.300 in to 0.300 in | Three 0.400 in to 0.300 in | Three 0.400 in to 0.400 in | Two 0.400 in to 0.600 in | Two 0.600 in to 0.600 in

Dimensions

Nominal Size 0.195 in | 0.240 in | 0.300 in | 0.400 in | 0.600 in

Material Specifications

Material Type Butyl rubber tape | PVC tape

Environmental Specifications

UV Resistance Test Method Butyl test method in QUV weatherometer cycle of 8 hours UV at 150 °F then 4 hours of condensation at 104 °F | PVC tape test method UL 510, ASTM D1000
UV Resistance, minimum with no degradation ≥1000 hours
Weather Resistance Test Method 04AS00-03.6.0 | MIL-STD-1344A, Method 1002

Packaging and Weights

Height, packed 165.1 mm | 6.5 in
Width, packed 50.8 mm | 2 in
Length, packed 91.44 mm | 3.6 in
Included One roll of 2-1/2 in butyl rubber tape (0.06 in thick) | One roll of 3/4 in PVC tape
Packaging quantity 1
Weight, gross 0.36 kg | 0.794 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
