HCD0-2BDDL0A

Base Product: EHD-PANELS

  • Available in:
  • Latin America
  • North America

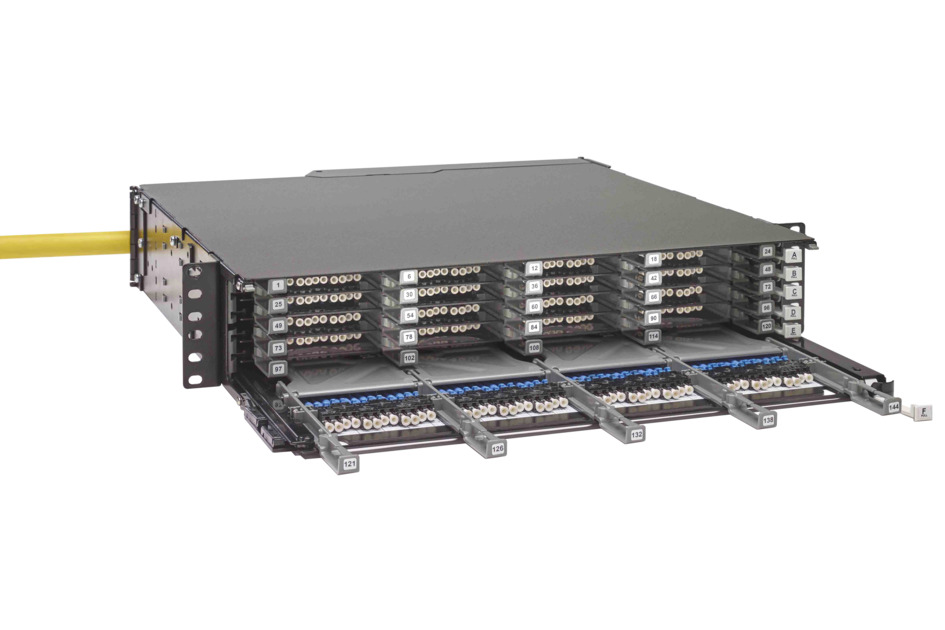

EHD-2U Pre-stubbed Patch Panel with LC Adapter and 288f I/O, Riser/LSZH rollable ribbon cable, left cable entry, singlemode with cable length in meters from 25m to 400m in 25m increments

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Variants

Configure and display product variants of HCD0-2BDDL0A by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Part Number Cable Length
No configured items found.

Product Classification

Regional Availability Latin America | North America
Portfolio CommScope®
Product Type Fiber patch panel
Product Series EHD

General Specifications

Color Black
Interface, front LC/UPC
Interface, rear Stub tail
Rack Units 2
Shelf Movement Sliding
Total Ports, quantity 288

Dimensions

Height 88.9 mm | 3.5 in
Width 482.6 mm | 19 in
Depth 465.84 mm | 18.34 in
Cable Length 25 m | 82.021 ft

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2 | OS2
Insertion Loss, maximum 0.35 dB
