Warning Icon

For other alternatives, please contact us for more information.

0 Alternative products available

WT-SPM12-9-126

Stackable Pod Mount Assembly, 3-sector platform, 12 ft face, nine 2-3/8 in OD x 126 in plain end pipes included

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Water tower mount

General Specifications

Mounting Hatch plate
Pipe, quantity 9
Sectors, quantity 3

Dimensions

Height 3200.4 mm | 126 in
Face Width 3.81 m | 12.5 ft
Width 3810 mm | 150 in
Length 3810 mm | 150 in
Pipe Length 3200.4 mm | 126 in
Compatible Diameter 1219.2 mm | 48 in
Pipe Outer Diameter 60.96 mm | 2.4 in

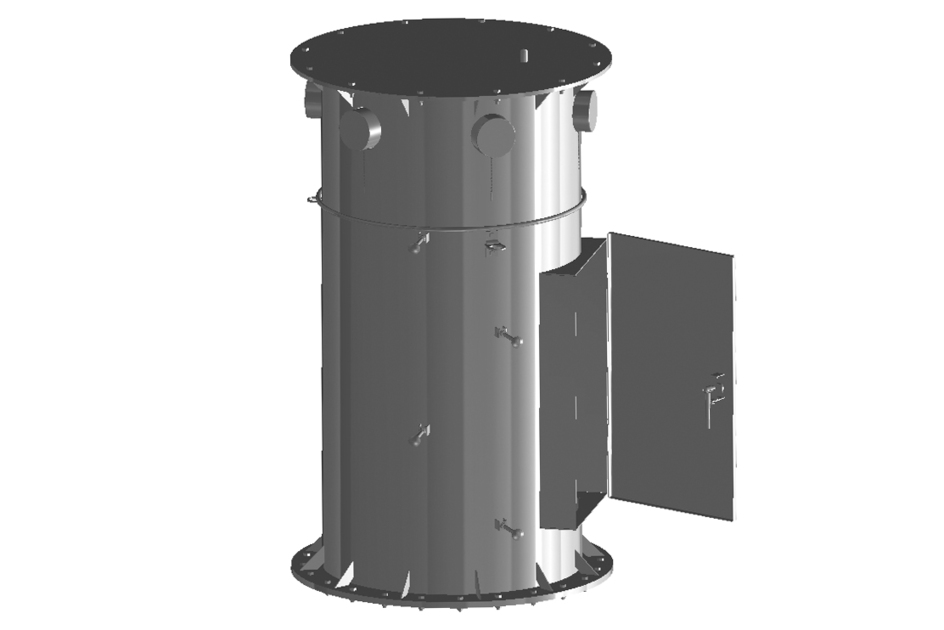

Outline Drawing

Click on image to enlarge.

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Mount | Plain end pipes (9) | Platform
Packaging quantity 1
Weight, net 1383.82 kg | 3050.8 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Product Type Water tower mount

General Specifications

Mounting Hatch plate
Pipe, quantity 9
Sectors, quantity 3

Dimensions

Height 3200.4 mm | 126 in
Face Width 3.81 m | 12.5 ft
Width 3810 mm | 150 in
Length 3810 mm | 150 in
Pipe Length 3200.4 mm | 126 in
Compatible Diameter 1219.2 mm | 48 in
Pipe Outer Diameter 60.96 mm | 2.4 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Mount | Plain end pipes (9) | Platform
Packaging quantity 1
Weight, net 1383.82 kg | 3050.8 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Specification

Product Specification
