SBNHH-1D45A
6-port sector antenna, 2x 698–896 and 4x 1695–2360 MHz, 45° HPBW, 3x RET
Features and Benefits
- Interleaved dipole technology providing for attractive, low wind load mechanical package
- Three internal RETs for independent tilt on all three bands
- The antenna is supplied with mounting kits that provide 0 degree of mechanical downtilt; optional downtilt mounting kits are available
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |

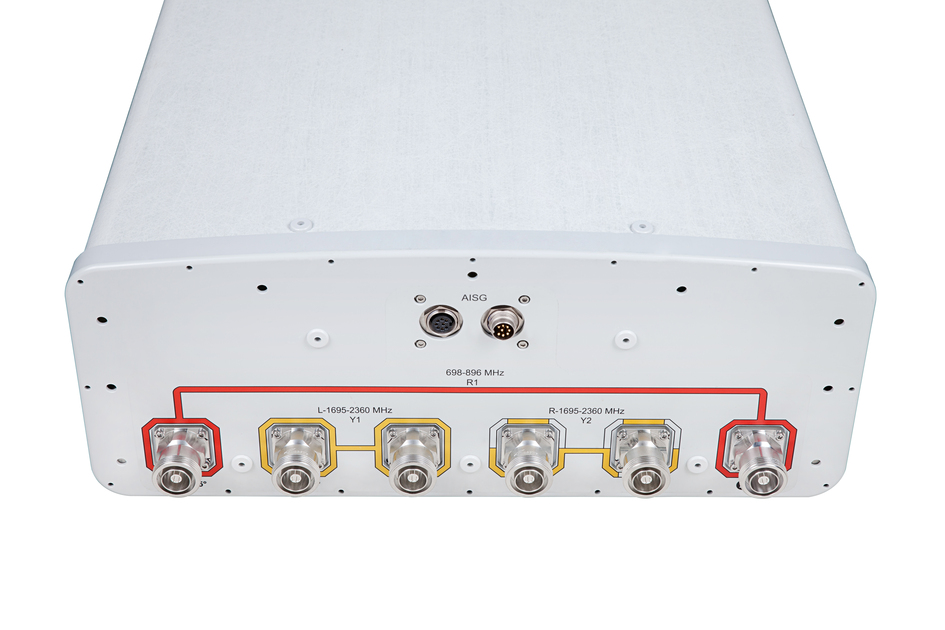

| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote Electrical Tilt (RET) Information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (2) | Low band (1) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 13 W |
| Protocol | 3GPP/AISG 2.0 (Multi-RET) |
Dimensions
| Width | 457 mm | 17.992 in |
| Depth | 178 mm | 7.008 in |
| Length | 1220 mm | 48.032 in |
| Net Weight, without mounting kit | 22.9 kg | 50.486 lb |
Array Layout
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
Electrical Specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain, dBi | 15.5 | 16.2 | 18.5 | 19.1 | 19.4 | 20.0 |
| Beamwidth, Horizontal, degrees | 48 | 43 | 44 | 43 | 44 | 39 |
| Beamwidth, Vertical, degrees | 18.5 | 16.8 | 7.9 | 7.3 | 6.9 | 6 |
| Beam Tilt, degrees | 2–18 | 2–18 | 1–9 | 1–9 | 1–9 | 1–9 |
| USLS (First Lobe), dB | 16 | 17 | 16 | 16 | 15 | 13 |
| Front-to-Back Ratio at 180°, dB | 33 | 34 | 37 | 36 | 38 | 39 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 350 | 350 | 350 | 350 | 350 | 300 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain by all Beam Tilts, average, dBi | 15.1 | 15.9 | 18.1 | 18.8 | 19.1 | 19.7 |
| Gain by all Beam Tilts Tolerance, dB | ±0.5 | ±0.4 | ±0.5 | ±0.4 | ±0.4 | ±0.3 |
| Gain by Beam Tilt, average, dBi | 2 ° | 15.210 ° | 15.1 18 ° | 14.9 | 2 ° | 16.010 ° | 16.0 18 ° | 15.5 | 1 ° | 18.2 5 ° | 18.2 9 ° | 18.0 | 1 ° | 18.9 5 ° | 18.8 9 ° | 18.6 | 1 ° | 19.1 5 ° | 19.1 9 ° | 18.9 | 1 ° | 19.8 5 ° | 19.8 9 ° | 19.4 |
| Beamwidth, Horizontal Tolerance, degrees | ±1.7 | ±3.1 | ±2.1 | ±1.4 | ±1.5 | ±1.6 |
| Beamwidth, Vertical Tolerance, degrees | ±1.1 | ±0.8 | ±0.3 | ±0.3 | ±0.5 | ±0.2 |
| USLS, beampeak to 20° above beampeak, dB | 17 | 21 | 14 | 14 | 15 | 13 |
| Front-to-Back Total Power at 180° ± 30°, dB | 24 | 25 | 28 | 29 | 30 | 30 |
| CPR at Boresight, dB | 26 | 30 | 20 | 24 | 18 | 20 |
| CPR at 10 dB Horizontal Beamwidth, dB | 13 | 15 | 10 | 10 | 11 | 13 |
Mechanical Specifications
| Effective Projective Area (EPA), frontal | 0.64 m² | 6.889 ft² |
| Effective Projective Area (EPA), lateral | 0.13 m² | 1.399 ft² |
| Mechanical Tilt Range | 0°–12° |
| Wind Loading @ Velocity, frontal | 677.0 N @ 150 km/h (152.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 595.0 N @ 150 km/h (133.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 677.0 N @ 150 km/h (152.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 595.0 N @ 150 km/h (133.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 567 mm | 22.323 in |
| Depth, packed | 311 mm | 12.244 in |
| Length, packed | 1342 mm | 52.835 in |
| Weight, gross | 32.2 kg | 70.989 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant/Exempted |
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote Electrical Tilt (RET) Information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (2) | Low band (1) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 13 W |
| Protocol | 3GPP/AISG 2.0 (Multi-RET) |
Dimensions
| Width | 457 mm | 17.992 in |
| Depth | 178 mm | 7.008 in |
| Length | 1220 mm | 48.032 in |
| Net Weight, without mounting kit | 22.9 kg | 50.486 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
Electrical Specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain, dBi | 15.5 | 16.2 | 18.5 | 19.1 | 19.4 | 20.0 |
| Beamwidth, Horizontal, degrees | 48 | 43 | 44 | 43 | 44 | 39 |
| Beamwidth, Vertical, degrees | 18.5 | 16.8 | 7.9 | 7.3 | 6.9 | 6 |
| Beam Tilt, degrees | 2–18 | 2–18 | 1–9 | 1–9 | 1–9 | 1–9 |
| USLS (First Lobe), dB | 16 | 17 | 16 | 16 | 15 | 13 |
| Front-to-Back Ratio at 180°, dB | 33 | 34 | 37 | 36 | 38 | 39 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 350 | 350 | 350 | 350 | 350 | 300 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain by all Beam Tilts, average, dBi | 15.1 | 15.9 | 18.1 | 18.8 | 19.1 | 19.7 |
| Gain by all Beam Tilts Tolerance, dB | ±0.5 | ±0.4 | ±0.5 | ±0.4 | ±0.4 | ±0.3 |
| Gain by Beam Tilt, average, dBi | 2 ° | 15.2;10 ° | 15.1; 18 ° | 14.9 | 2 ° | 16.0;10 ° | 16.0; 18 ° | 15.5 | 1 ° | 18.2; 5 ° | 18.2; 9 ° | 18.0 | 1 ° | 18.9; 5 ° | 18.8; 9 ° | 18.6 | 1 ° | 19.1; 5 ° | 19.1; 9 ° | 18.9 | 1 ° | 19.8; 5 ° | 19.8; 9 ° | 19.4 |
| Beamwidth, Horizontal Tolerance, degrees | ±1.7 | ±3.1 | ±2.1 | ±1.4 | ±1.5 | ±1.6 |
| Beamwidth, Vertical Tolerance, degrees | ±1.1 | ±0.8 | ±0.3 | ±0.3 | ±0.5 | ±0.2 |
| USLS, beampeak to 20° above beampeak, dB | 17 | 21 | 14 | 14 | 15 | 13 |
| Front-to-Back Total Power at 180° ± 30°, dB | 24 | 25 | 28 | 29 | 30 | 30 |
| CPR at Boresight, dB | 26 | 30 | 20 | 24 | 18 | 20 |
| CPR at 10 dB Horizontal Beamwidth, dB | 13 | 15 | 10 | 10 | 11 | 13 |
Mechanical Specifications
| Effective Projective Area (EPA), frontal | 0.64 m² | 6.889 ft² |
| Effective Projective Area (EPA), lateral | 0.13 m² | 1.399 ft² |
| Mechanical Tilt Range | 0°–12° |
| Wind Loading @ Velocity, frontal | 677.0 N @ 150 km/h (152.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 595.0 N @ 150 km/h (133.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 677.0 N @ 150 km/h (152.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 595.0 N @ 150 km/h (133.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 567 mm | 22.323 in |
| Depth, packed | 311 mm | 12.244 in |
| Length, packed | 1342 mm | 52.835 in |
| Weight, gross | 32.2 kg | 70.989 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant/Exempted |
