760251051 | EPX-4U-PNL-ENC-FX

Base Product: EPX-PANELS

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

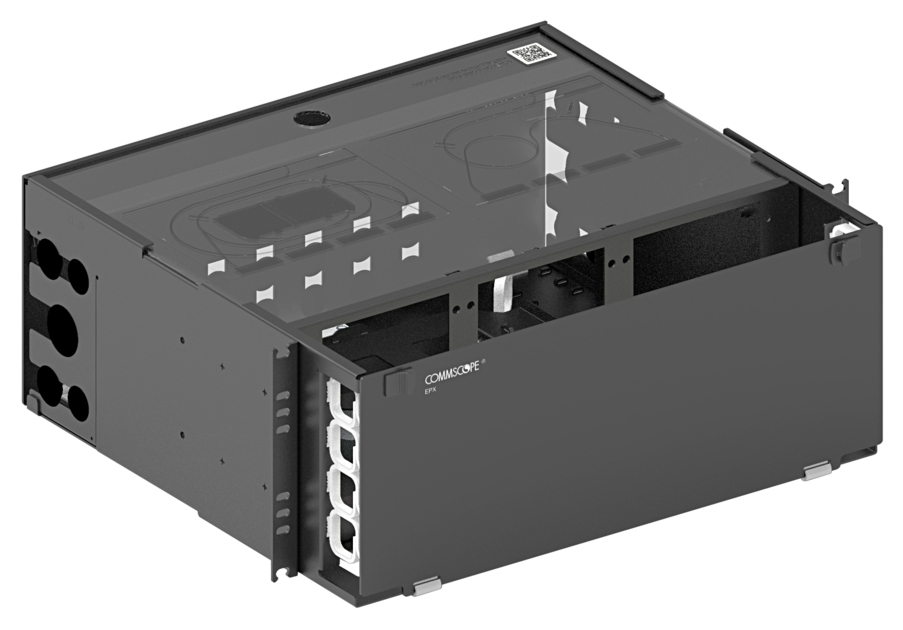

EPX 4U fixed panel, accepts (12) LGX/PNL style splice cassettes, modules or panels, providing up to 144 duplex LC ports

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber patch panel | Fiber patch/splice panel
Product Series EPX

General Specifications

Application Accepts twelve LGX/1000 footprint panels/cassettes | Accepts twelve PNL-type adapter panels or ReadyPATCH® modules
Color Black
Intelligence Type Not iPatch® ready
Interface, front Unloaded
Module/Adapter Pack Slots, quantity 12
Rack Type EIA 19 in
Rack Units 4
Shelf Movement Fixed
Total Fibers, quantity 288
Total Ports, quantity 0

Dimensions

Height 177.8 mm | 7.000 in
Width 482.6 mm | 19.000 in
Depth 412.75 mm | 16.250 in

Environmental Specifications

Safety Standard CSA 22.2 | UL 1863

Packaging and Weights

Packaging quantity 1
Weight, net 6.749 kg | 14.88 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
