FPX-TERMINATION-SPLICE-PANELS
Base Product
- Available in:
- Latin America
- North America

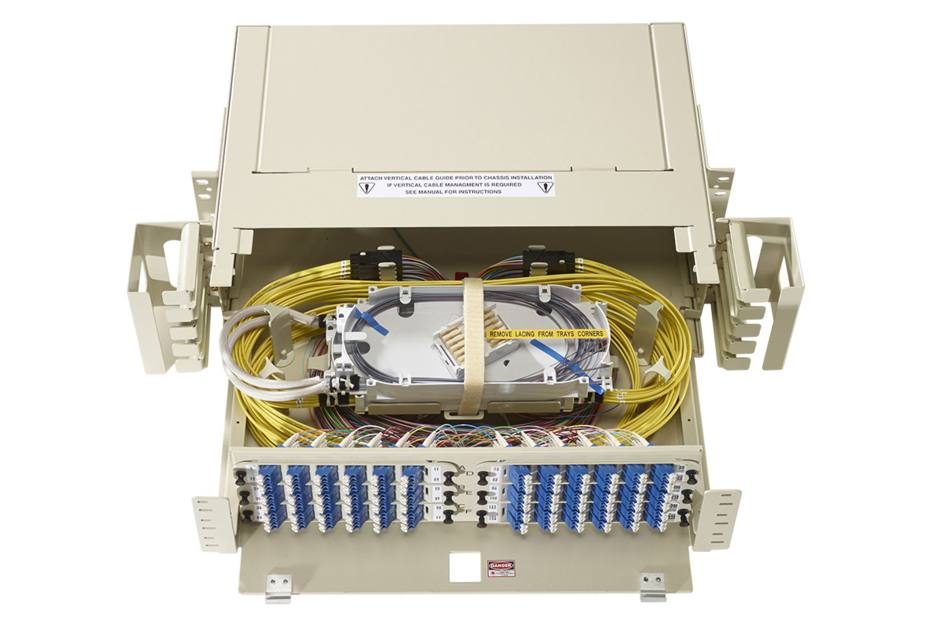

CommScope’s FPX series fiber panels are available to be shipped with factory installed adapter packs and/or preterminated pigtail assemblies which simplifies the ordering process and reduces installation time and cost.
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
CommScope’s FPX series provides industry-leading fiber cable protection and management in a modular footprint. With a depth of 12.0” and with front only as well as front and rear access, the FPX panel is suitable for a wide range of applications including central offices, data centers, indoor and outdoor cabinets, huts, CEV’s and more.
Specifications
Product classification
| Regional Availability | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Fiber patch/splice panel |
| Product Series | FPX |
General Specifications
| Color | Black | Putty white |
| Rack Type | EIA 19 in | EIA 23 in |
| Shelf Movement | Sliding |
Dimensions
| Width | 482.6 mm | 19 in |
| Depth | 304.8 mm | 12 in |
Ordering Tree
| Click on image to enlarge. |
Environmental Specifications
| Operating Temperature | -40 ºC to +85 ºC (-40 ºF to +185 ºF) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
Product classification
| Regional Availability | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Fiber patch/splice panel |
| Product Series | FPX |
General Specifications
| Color | Black | Putty white |
| Rack Type | EIA 19 in | EIA 23 in |
| Shelf Movement | Sliding |
Dimensions
| Width | 482.6 mm | 19 in |
| Depth | 304.8 mm | 12 in |
Ordering Tree
| Click on image to enlarge. |
Environmental Specifications
| Operating Temperature | -40 ºC to +85 ºC (-40 ºF to +185 ºF) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
