FPX-AF-24APR08

Base Product: FPX-ADAPTER-PACKS

  • Available in:
  • North America

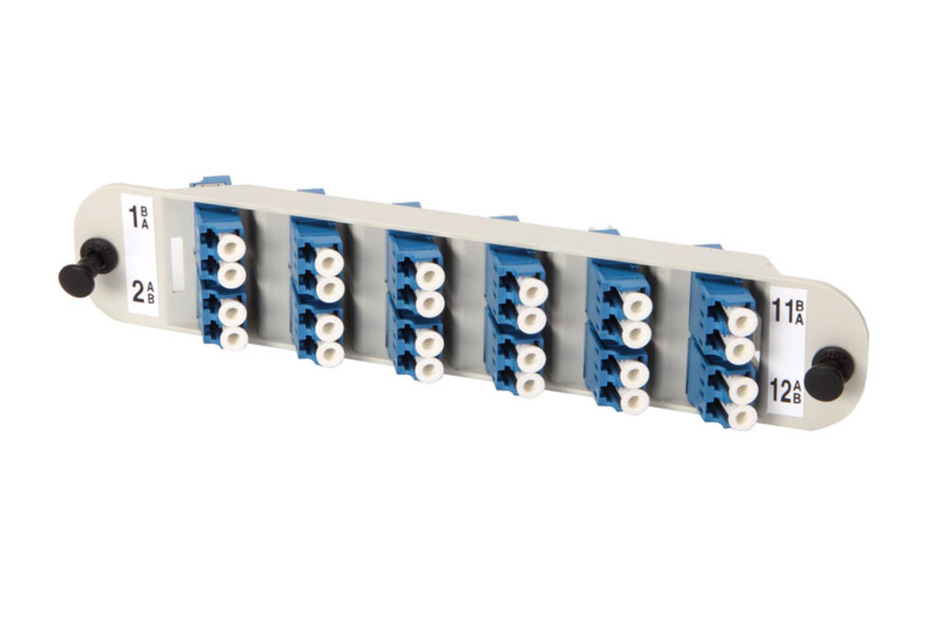

FPX Fiber Optic Adapter Pack Only, Singlemode, 24 fiber, LC/UPC adapter, right, blue, putty white

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability North America
Product Type Fiber adapter pack
Product Series FPX

General Specifications

Application For use with FPX panels
Adapter Color Blue
Adapters, quantity, front 12
Body Style Duplex | Right orientation
Color, front Putty white
Interface LC/UPC
Total Ports, quantity, front 24

Dimensions

Height 33.02 mm | 1.3 in
Width 176.53 mm | 6.95 in

Ordering Tree

Click on image to enlarge.

Optical Specifications

Fiber Mode Singlemode

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature -40 °C to +85 °C (-40 °F to +185 °F)

Packaging and Weights

Packaging quantity 1
Packaging Type Bag | Carton

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
