760234915 | MFPS-JHD-P-PNL2-096

Base Product: MFPS-PANELS

Available in:
EMEA

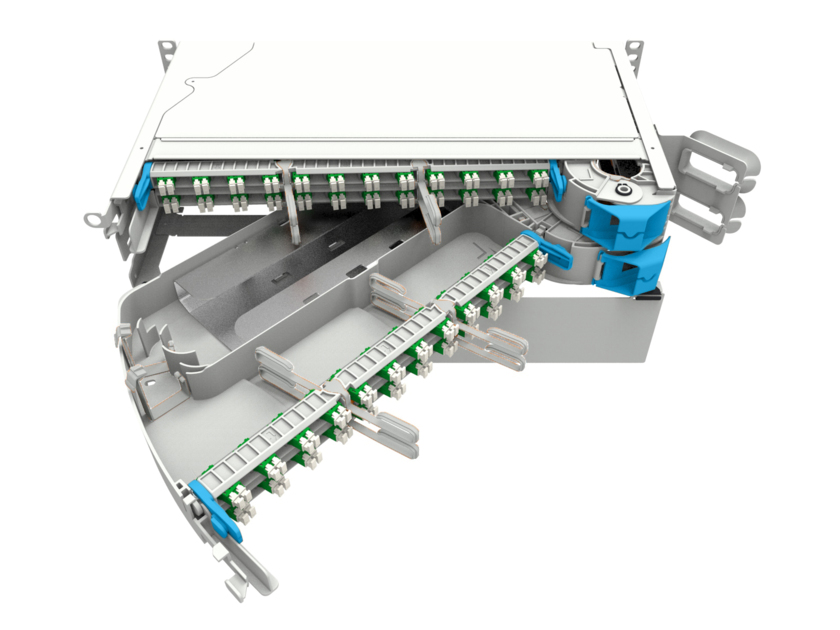

MFPS Fiber Optic panel, 2RU, 48 fibers/RU, patch/patch, front patch cords orientation to the right, 96 LC/APC

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Compatible with most common cable types: loose tube, central core, slotted core
Suitable for cabinets and POP locations
Various available panel heights to support termination counts from 12 to 288
Simple wrap-around design for easy fiber routing
Supports path cord diameters of 1.2 to 2.4mm (XD-series require the usage of 1.2mm patch cords)

Specifications

Product classification

Regional Availability	EMEA
Portfolio	CommScope®
Product Type	Fiber patch panel
Product Series	MFPS

General Specifications

Functionality	Patching
Color	Gray
Door Type, front	Compression latch \| Hinged
Interface, front	LC/APC
Patch Cord Entry Location	Front, right side
Patch Cord Routing	Right sided
Rack Type	EIA 19 in \| ETSI 600 mm
Rack Units	2
Shelf Movement	Hinged
Total Ports, quantity	96
Transmission Standards	ETSI EN 300 019-1-3 \| IEC 61300-3-34

Dimensions

Height	88.9 mm \| 3.5 in
Width	482.6 mm \| 19 in
Depth	279.91 mm \| 11.02 in

Port Configuration

Click on image to enlarge.

Ordering Tree

Click on image to enlarge.

Material Specifications

Finish	Powder coated
Material Type	Ethylene-propylene (EP) \| Polyethylene terephthalate (PET)

Optical Specifications

Fiber Mode

Singlemode

Environmental Specifications

Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-20 °C to +85 °C (-4 °F to +176 °F)
Flammability Rating	UL 94 V-0

Packaging and Weights

Included	Mounting hardware
Packaging quantity	1

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS	Compliant
UK-ROHS	Compliant
