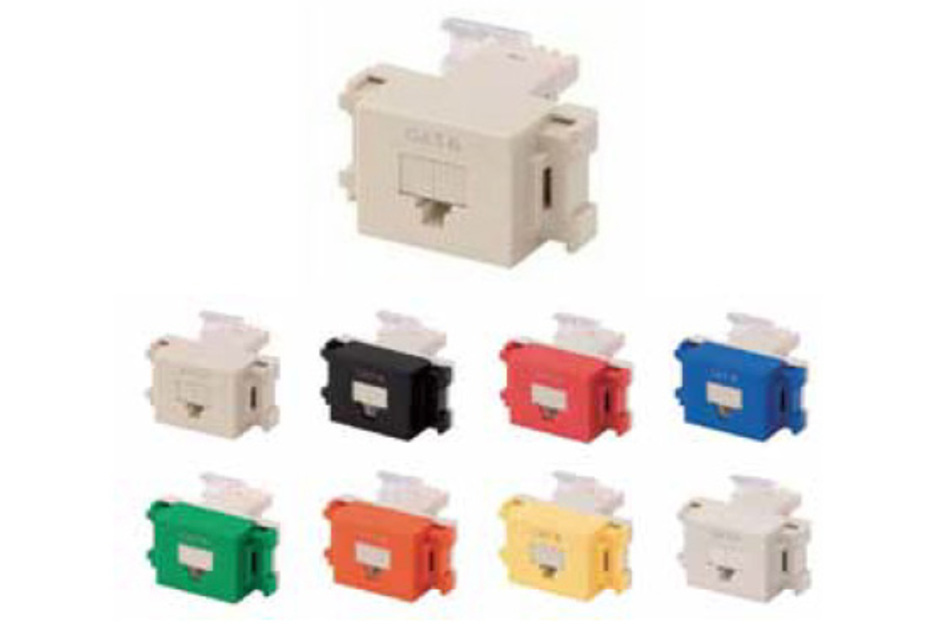

SX-Series Modular Jack, RJ45, JIS Faceplate, Cat6 Unshielded, with Shutter

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of 1554784 by selecting options

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand
Portfolio	NETCONNECT®
Product Type	Modular jack
Product Series	JIS Series

General Specifications

ANSI/TIA Category	6
Cable Type	Unshielded
Conductor Type	Solid \| Stranded
Mounting	JIS Series faceplates and panels
Outlet Type	Standard
Termination Tool	110 Punchdown tool
Termination Type	IDC
Transmission Standards	ANSI/TIA-568-C.2 \| ISO/IEC 11801 Class E
Wiring	T568A \| T568B

Dimensions

Panel Thickness, recommended	1.6 mm \| 0.063 in
Height	22.7 mm \| 0.894 in
Width	28 mm \| 1.102 in
Depth	34 mm \| 1.339 in
Compatible Insulated Conductor Diameter, maximum	1.45 mm \| 0.057 in
Contact Plating Thickness	1.27 µm
Compatible Conductor Gauge, solid	24–22 AWG
Compatible Conductor Gauge, stranded	26–24 AWG

Electrical Specifications

PoE Durability

Supports IEEE 802.3bt Type 4 (90 W) applications greater than 3000 plug to jack mating cycles

Material Specifications

Contact Base Material	Beryllium copper
Contact Plating Material	Gold
Material Type	Polycarbonate

Environmental Specifications

Flammability Rating

UL 94 V-0

Product Classification

Regional Availability	Asia \| Australia/New Zealand
Portfolio	NETCONNECT®
Product Type	Modular jack
Product Series	JIS Series

General Specifications

ANSI/TIA Category	6
Cable Type	Unshielded
Conductor Type	Solid \| Stranded
Mounting	JIS Series faceplates and panels
Outlet Type	Standard
Termination Tool	110 Punchdown tool
Termination Type	IDC
Transmission Standards	ANSI/TIA-568-C.2 \| ISO/IEC 11801 Class E
Wiring	T568A \| T568B

Dimensions

Panel Thickness, recommended	1.6 mm \| 0.063 in
Height	22.7 mm \| 0.894 in
Width	28 mm \| 1.102 in
Depth	34 mm \| 1.339 in
Compatible Insulated Conductor Diameter, maximum	1.45 mm \| 0.057 in
Contact Plating Thickness	1.27 µm
Compatible Conductor Gauge, solid	24–22 AWG
Compatible Conductor Gauge, stranded	26–24 AWG
