FT-MP

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

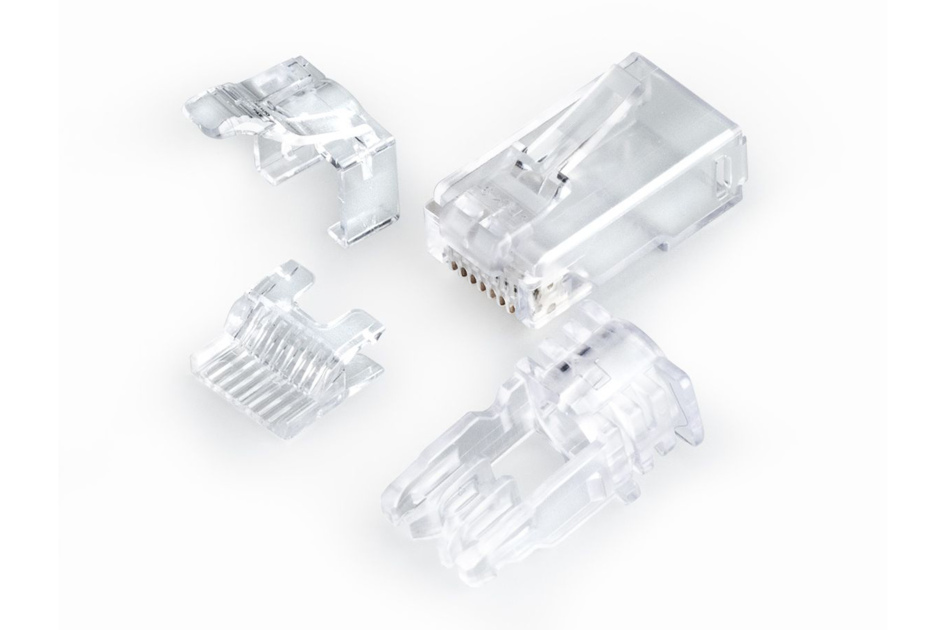

Field Term Modular Plug, RJ45

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of FT-MP by selecting options

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Modular plug

General Specifications

ANSI/TIA Category	6 \| 6A
Cable Type	Shielded \| Unshielded
Color	Clear
Conductor Type	Solid \| Stranded
Interface	RJ45
Positions/Loaded Contacts	8
Termination Type	IDC

Dimensions

Contact Plating Thickness	1.27 µm
Compatible Conductor Gauge, solid	23 AWG \| 24 AWG

Material Specifications

Contact Base Material	Copper alloy
Contact Plating Material	Gold over nickel
Material Type	Polycarbonate

Mechanical Specifications

Plug Insertion Life, minimum

750 times

Environmental Specifications

Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Relative Humidity	Up to 93%, non-condensing
Safety Standard	UL 114344

Packaging and Weights

Packaging Type

Bag
