MHBD-F1N2C

Base Product: MHBD

Available in:
Asia
Latin America
North America

Hardened Multifiber Optical Connector (HMFOC) cable assembly, HMFOC plug to female MPO, 24-fiber

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Build America Buy America (BABA)*

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Broadband for Everyone Program

Product Variants

Configure and display product variants of MHBD-F1N2C by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Cable Assembly Length m ft

Part Number	Cable Assembly Length	UOM
No configured items found.

Features and Benefits

*Product complies with the Build America, Buy America Act (BABAA) requirements of the Infrastructure Investment and Jobs Act of 2021 (Pub. L. 117- 58, §§ 70901-70953), or is the subject of a waiver approved by the Secretary of Commerce or designee. Compliance requirements and waiver applicability vary based on government funding program. Check the laws and regulations for your specific program.

Specifications

Product Classification

Regional Availability	Asia \| Latin America \| North America
Product Type	Fiber drop cable assembly
Product Series	MHBD
Government Funding	Build America Buy America (BABA) compliant*
Ordering Note	For custom cable assembly lengths, please contact your local CommScope representative

General Specifications

Cable Type	Dielectric - Flat
Connector A, quantity	2
Color, boot A	Black
Color, connector A	Black
Connector B, quantity	2
Color, boot B	Black
Color, connector B	Green
Interface, Connector A	Hardened multi-fiber (HMFOC) plug
Interface Feature, connector A	Female
Interface, Connector B	MPO
Interface Feature, connector B	Female \| Unpinned
Jacket Color	Black
Total Fibers, quantity	24

Dimensions

Breakout Length, connector A	914.400 mm \| 36 in
Breakout Length, connector B	431.800 mm \| 17 in
Cable Assembly Length Range (m)	1 – 900
Cable Assembly Length Range (ft)	10 – 1000
Cable Outer Diameter	4.5 x 8.0 mm (0.18 x 0.31 in)

Ordering Tree

Click on image to enlarge.

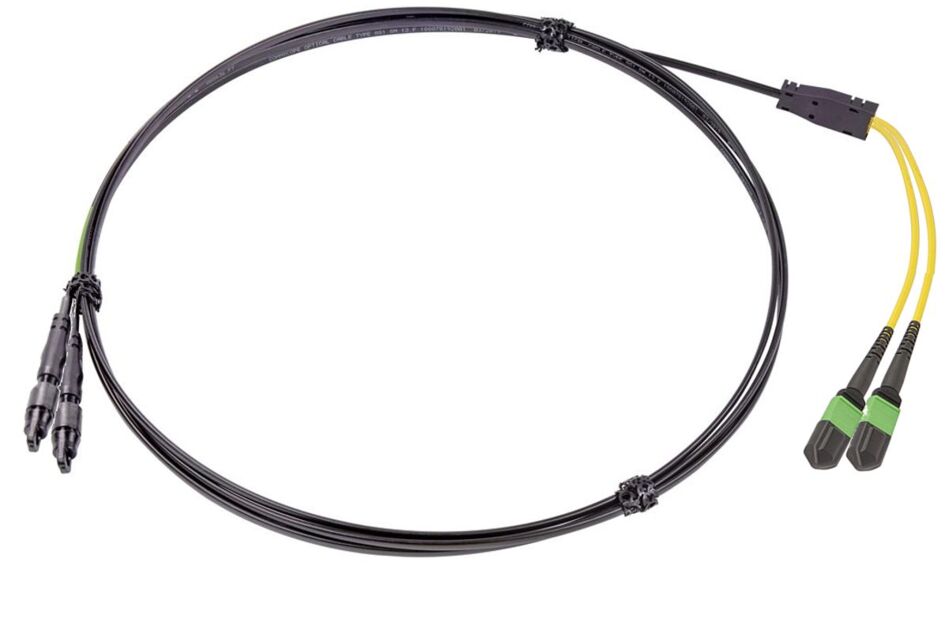

Representative Image

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded	88.9 mm \| 3.5 in
Minimum Bend Radius, unloaded	63.5 mm \| 2.5 in

Optical Specifications

Fiber Mode	Singlemode
Fiber Type	G.657.A2, TeraSPEED®
Insertion Loss, maximum, connector A	0.45 dB
Insertion Loss, maximum, connector B	0.4 dB
Return Loss, minimum, connector A	65 dB
Return Loss, minimum, connector B	65 dB

Environmental Specifications

Installation temperature	-30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Environmental Space	Outdoor, buried
Jacket UV Resistance	UV stabilized

Packaging and Weights

Packaging quantity
