3199122 | 075G(TD)110PP200ROPE

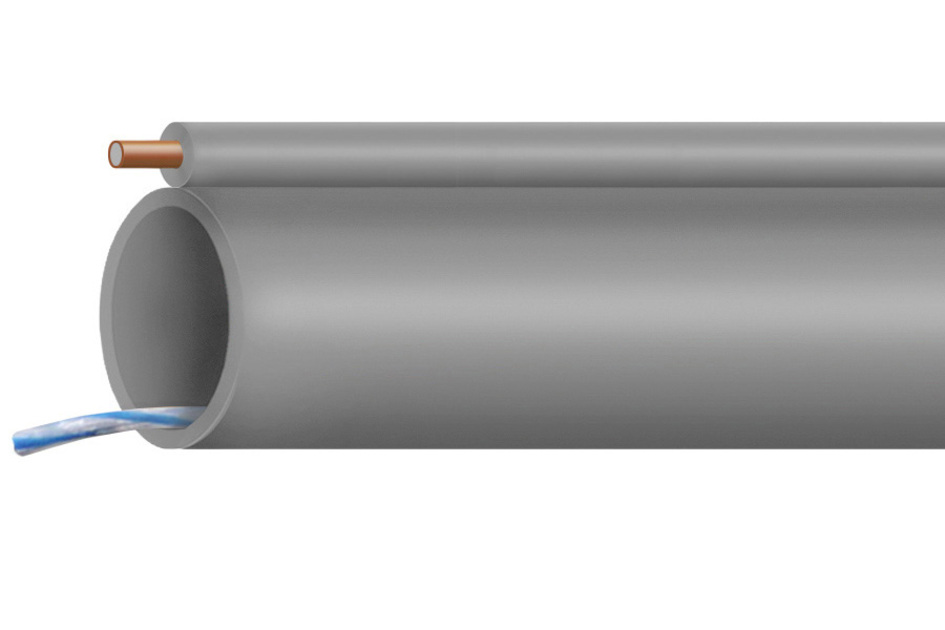

Toneable ConQuest® Empty Conduit, 3/4 in, SDR 11, gray, with pull line
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Empty conduit
Product Brand ConQuest®

General Specifications

Color Gray
Conductor Elongation, maximum 30 %
Conductor Type Solid
Conduit Type Toneable
Density Test Method ASTM D792A
Density, maximum 0.955 g/cm³ | 0.035 lb/in³
Density, minimum 0.941 g/cm³ | 0.034 lb/in³
Design Standard ASTM D3350-05
Wall Type Smooth

Dimensions

Length 304.8 m | 1000 ft
Conductor Diameter 1.024 mm | 0.0403 in
Inner Diameter, nominal 21.336 mm | 0.84 in
Outer Diameter, nominal 26.67 mm | 1.05 in
Wall Thickness Designation SDR 11
Wall Thickness, minimum 2.413 mm | 0.095 in
Nominal Size 3/4 in
Conductor Gauge 18 AWG

Electrical Specifications

Conductor Resistance 30 ohms/kft | 98.425 ohms/km

Material Specifications

Conductor Material Type Copper-clad steel (CCS)
Flexural Modulus, minimum 551.581 N/mm² | 80000 psi
Flexural Property Test Method ASTM D790
Hydrostatic Design Basis Not pressure rated
Hydrostatic Design Test Method ASTM D2837
Material Type High density polyethylene (HDPE) | Polypropylene
Melt Flow Rate Test Method ASTM D1238
Melt Flow Rate, maximum 0.39 g/10 min

Mechanical Specifications

Minimum Bend Radius, unsupported 304.8 mm | 12 in
Tensile Property Test Method ASTM D638
Tensile Strength at yield, minimum 20.684 N/mm² | 3000 psi
Breaking Strength 90.718 kg | 200 lb
Conductor Tensile Strength, minimum 344.738 N/mm² | 50000 psi
Pull Line Type Rope
Pulling Tension Note Applies to products manufactured after December 31, 2012
Pulling Tension, maximum 274.423 kg | 605 lb

Environmental Specifications

Environmental Stress Crack Resistance Failure rate of 10% within 96 hours
Environmental Stress Test Method ASTM D1693, ESCR Condition B

Packaging and Weights

Weight, net 193.461 kg/km | 130 lb/kft
