3399101 | 125T(TD)135 EMPTY DUCT

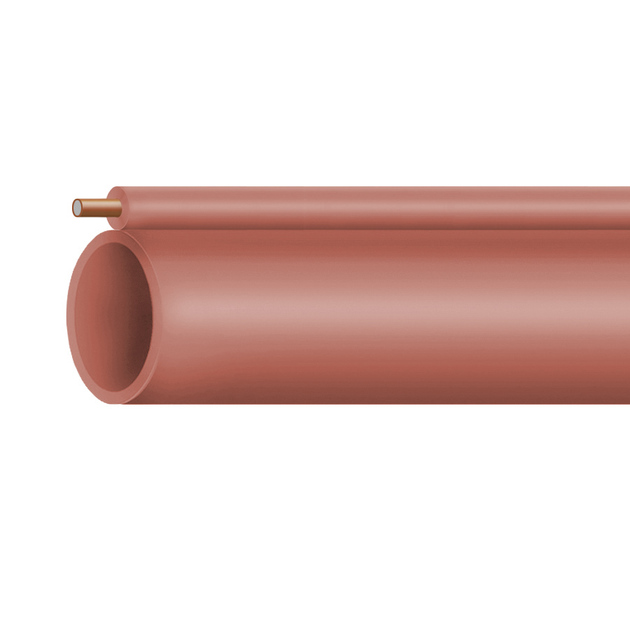

Toneable ConQuest® Empty Conduit, 1 1/4 in, SDR 13.5, terracotta
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Empty conduit
Product Brand ConQuest®

General Specifications

Color Terracotta
Conductor Elongation, maximum 30 %
Conductor Type Solid
Conduit Type Toneable
Density Test Method ASTM D792A
Density, maximum 0.955 g/cm³ | 0.035 lb/in³
Density, minimum 0.941 g/cm³ | 0.034 lb/in³
Design Standard ASTM D3350-05
Wall Type Smooth

Dimensions

Length 3000 ft | 914.4 m
Conductor Diameter 0.0403 in | 1.024 mm
Inner Diameter, nominal 1.394 in | 35.408 mm
Outer Diameter, nominal 1.66 in | 42.164 mm
Wall Thickness Designation SDR 13.5
Wall Thickness, minimum 0.123 in | 3.124 mm
Nominal Size 1-1/4 in
Conductor Gauge 18 AWG

Electrical Specifications

Conductor Resistance 30 ohms/kft | 98.425 ohms/km

Material Specifications

Conductor Material Type Copper-clad steel (CCS)
Flexural Modulus, minimum 80000 psi | 551.581 N/mm²
Flexural Property Test Method ASTM D790
Hydrostatic Design Basis Not pressure rated
Hydrostatic Design Test Method ASTM D2837
Material Type High density polyethylene (HDPE)
Melt Flow Rate Test Method ASTM D1238
Melt Flow Rate, maximum 0.39 g/10 min

Mechanical Specifications

Minimum Bend Radius, unsupported 18 in | 457.2 mm
Tensile Property Test Method ASTM D638
Tensile Strength at yield, minimum 3000 psi | 20.684 N/mm²
Conductor Tensile Strength, minimum 50000 psi | 344.738 N/mm²
Pulling Tension Note Applies to products manufactured after December 31, 2012
Pulling Tension, maximum 1260 lb | 571.526 kg

Environmental Specifications

Environmental Stress Crack Resistance Failure rate of 10% within 96 hours
Environmental Stress Test Method ASTM D1693, ESCR Condition B

Packaging and Weights

Weight, net 265 lb/kft | 36.638 kg/km

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system

Product Classification

Product Type Empty conduit
Product Brand ConQuest®

General Specifications

Color Terracotta
Conductor Elongation, maximum 30 %
Conductor Type Solid
Conduit Type Toneable
Density Test Method ASTM D792A
Density, maximum 0.955 g/cm³ | 0.035 lb/in³
Density, minimum 0.941 g/cm³ | 0.034 lb/in³
Design Standard ASTM D3350-05
Wall Type Smooth

Dimensions

Length 3000 ft | 914.4 m
Conductor Diameter 0.0403 in | 1.024 mm
Inner Diameter, nominal 1.394 in | 35.408 mm
Outer Diameter, nominal 1.66 in | 42.164 mm
Wall Thickness Designation SDR 13.5
Wall Thickness, minimum 0.123 in | 3.124 mm
Nominal Size 1-1/4 in
Conductor Gauge 18 AWG

Electrical Specifications

Conductor Resistance 30 ohms/kft | 98.425 ohms/km

Material Specifications

Conductor Material Type Copper-clad steel (CCS)
Flexural Modulus, minimum 80000 psi | 551.581 N/mm²
Flexural Property Test Method ASTM D790
Hydrostatic Design Basis Not pressure rated
Hydrostatic Design Test Method ASTM D2837
Material Type High density polyethylene (HDPE)
Melt Flow Rate Test Method ASTM D1238
Melt Flow Rate, maximum 0.39 g/10 min

Mechanical Specifications

Minimum Bend Radius, unsupported 18 in | 457.2 mm
Tensile Property Test Method ASTM D638
Tensile Strength at yield, minimum 3000 psi | 20.684 N/mm²
Conductor Tensile Strength, minimum 50000 psi | 344.738 N/mm²
Pulling Tension Note Applies to products manufactured after December 31, 2012
Pulling Tension, maximum 1260 lb | 571.526 kg

Environmental Specifications

Environmental Stress Crack Resistance Failure rate of 10% within 96 hours
Environmental Stress Test Method ASTM D1693, ESCR Condition B

Packaging and Weights

Weight, net 265 lb/kft | 36.638 kg/km

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
