770025003 | E2O677TSVRXP-2CT 900MTBLSZH-OJ

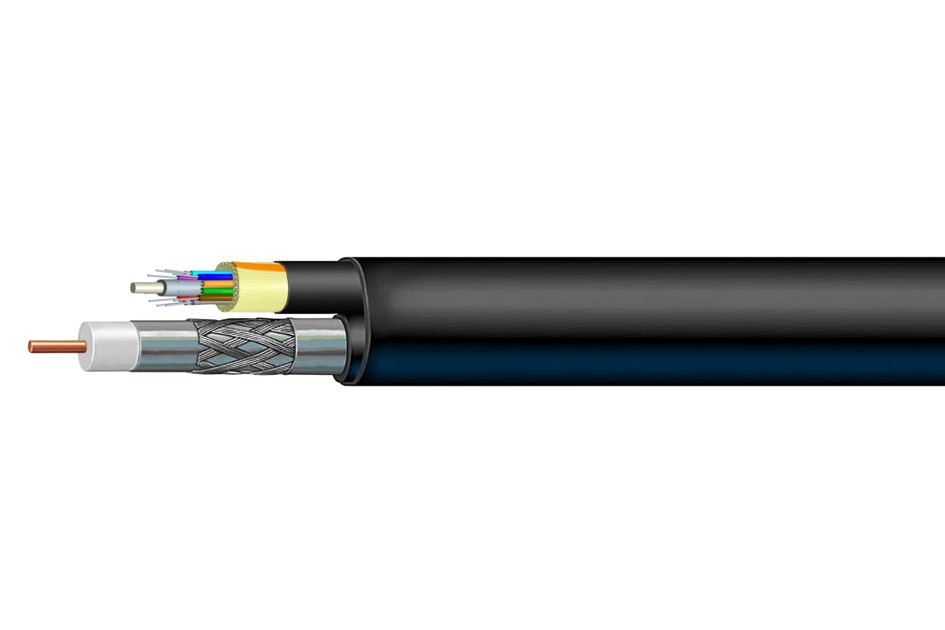

E2O® Coaxial/Fiber Hybrid Indoor Cable
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • E₂O is a solution that enables service providers the ability to bridge HFC networks to FTTx. The E₂O composite coaxial/fiber product line combines fiber, microducts, and coaxial cable under one jacket.
  • Serves businesses in a new commercial serving area
  • Mitigates future cost of fiber installation
  • Saves on initial installation due to “single sheath” vs. multiple sheaths
  • Ideal for commercial data customers that also require video
  • All products tested to industry standards
Specifications

Product Classification

Product Type Hybrid cable, coax and fiber
Product Brand E₂O®
Product Series 6 Series
Warranty One year

General Specifications

Cable Series Series 6
Color Black
Total Fiber Count 2

Dimensions

Height 11.887 mm | 0.468 in
Outer Jacket Thickness, nominal 0.508 mm | 0.02 in

Mechanical Specifications

Minimum Bend Radius 81.28 mm | 3.2 in
Pulling Tension, maximum 33.112 kg | 73 lb

Environmental Specifications

Environmental Space Riser

Packaging and Weights

Weight, gross 89.290 kg/km | 60 lb/kft

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Product Type Hybrid cable, coax and fiber
Product Brand E₂O®
Product Series 6 Series
Warranty One year

General Specifications

Cable Series Series 6
Color Black
Total Fiber Count 2

Dimensions

Height 11.887 mm | 0.468 in
Outer Jacket Thickness, nominal 0.508 mm | 0.02 in

Mechanical Specifications

Minimum Bend Radius 81.28 mm | 3.2 in
Pulling Tension, maximum 33.112 kg | 73 lb

Environmental Specifications

Environmental Space Riser

Packaging and Weights

Weight, gross 89.290 kg/km | 60 lb/kft

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
