P-CN

Base Product

Available in:
Asia
Australia/New Zealand
Latin America
Middle East/Africa
North America

Fiber Optic Cable, Indoor Plenum, Central Tube All-Dielectric

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of P-CN by selecting options

Features and Benefits

CommScope’s indoor fiber cables are positioned for Data Center or Central Office applications
Superior mechanical and optical performance with unmatched stability and quality
Available Jacket Colors: Aqua and Yellow

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| Latin America \| Middle East/Africa \| North America
Portfolio	CommScope®
Product Type	Fiber indoor cable
Product Series	P-CN

General Specifications

Cable Type	Ribbon central tube
Construction Type	Non-armored
Subunit Type	Gel-free

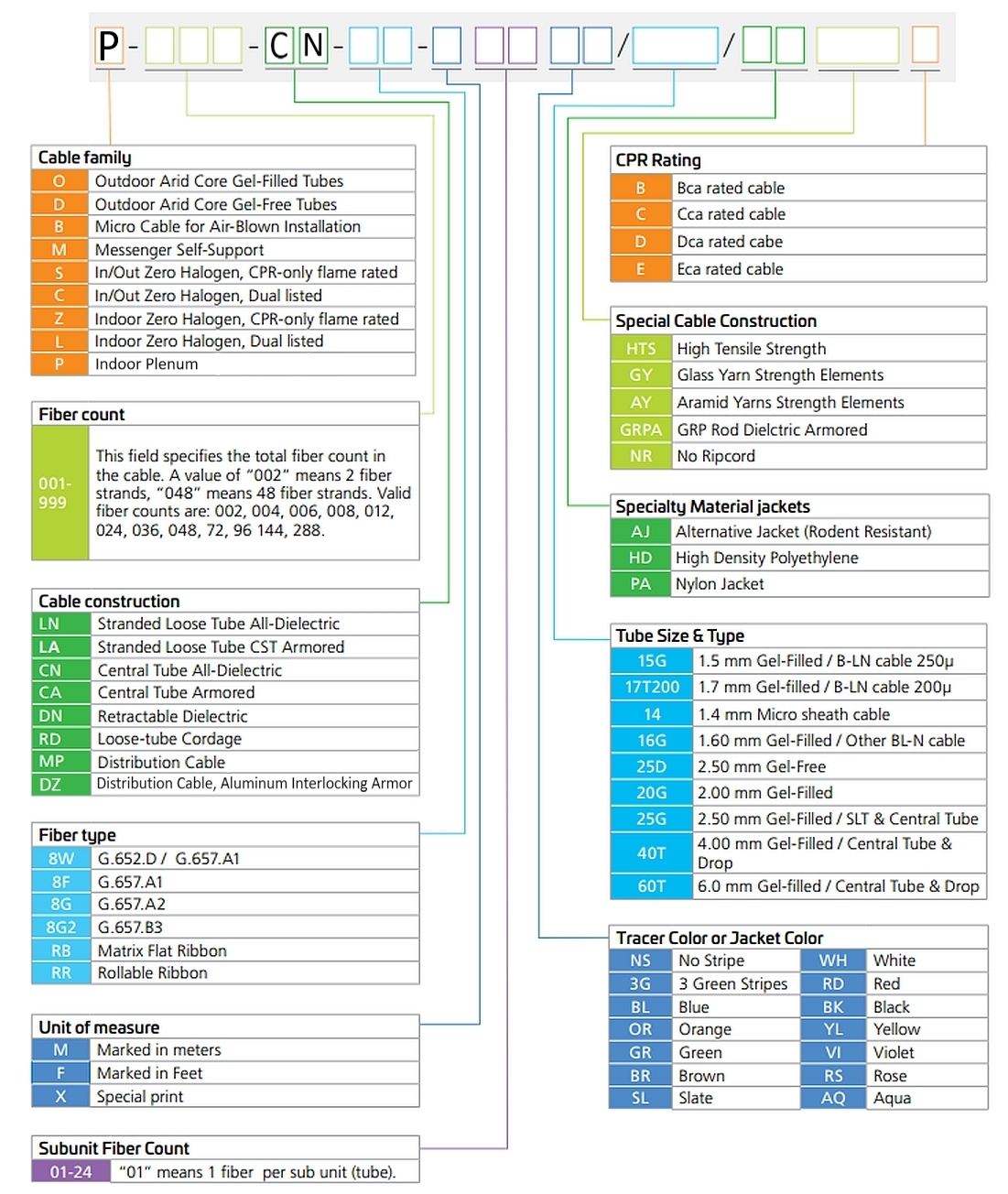

Ordering Tree

Click on image to enlarge.

Mechanical Specifications

Compression	10 N/mm \| 57.101 lb/in
Compression Test Method	FOTP-41 \| IEC 60794-1 E3
Flex Test Method	FOTP-104 \| IEC 60794-1 E6
Impact	2.94 N-m \| 26.021 in lb
Impact Test Method	FOTP-25 \| IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain Test Method	FOTP-33 \| IEC 60794-1 E1
Twist	10 cycles
Twist Test Method	FOTP-85 \| IEC 60794-1 E7

Environmental Specifications

Installation temperature	0 °C to +70 °C (+32 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards	ANSI/ICEA S-83-596 \| Telcordia GR-409
Environmental Space	Plenum
Flame Test Listing	NEC OFNP (UL) and c(UL)
Flame Test Method	NFPA 130 \| NFPA 262

Environmental Test Specifications

Heat Age Test Method	IEC 60794-1 F9
Low High Bend Test Method	FOTP-37 \| IEC 60794-1 E11
Temperature Cycle Test Method	FOTP-3 \| IEC 60794-1 F1
