2281066-2

Base Product: O-LA

  • Available in:
  • Latin America
  • North America

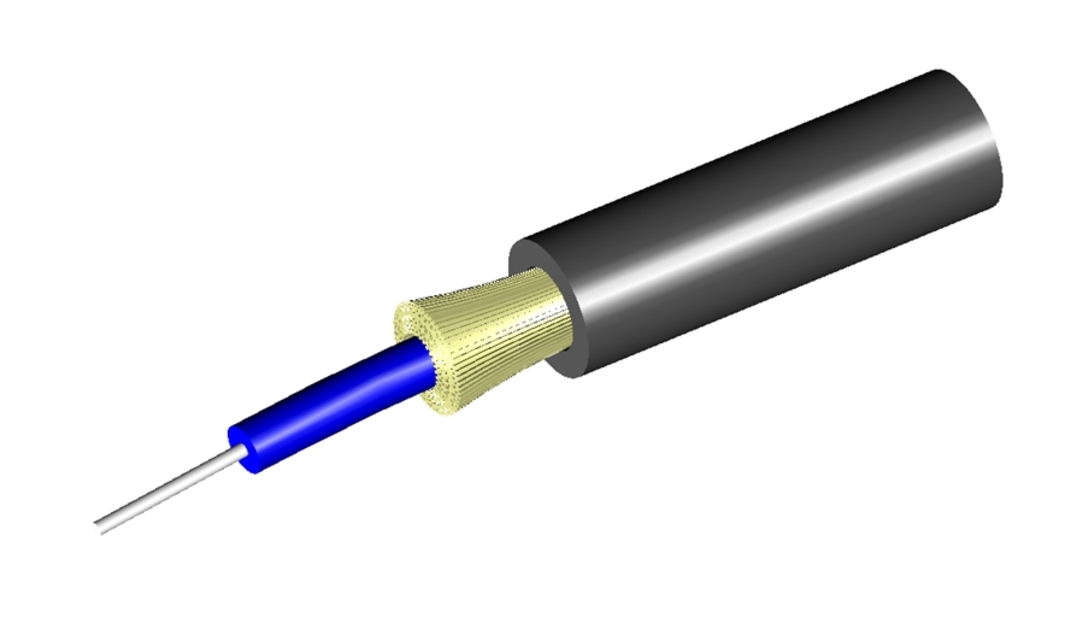

Fiber Optic Cable, Outdoor, Armored, Singlemode, G657.A2, black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Latin America | North America
Portfolio CommScope®
Product Type Fiber OSP cable
Product Series O-LA

General Specifications

Armor Type Corrugated steel
Cable Type Semi-tight buffer
Subunit Type Gel-filled
Jacket Color Black
Jacket Marking Meters
Total Fiber Count 2

Dimensions

Diameter Over Jacket 5.1 mm | 0.201 in

Mechanical Specifications

Minimum Bend Radius, loaded 50 mm | 1.969 in
Tensile Load, long term, maximum 450 N | 101.164 lbf
Tensile Load, short term, maximum 300 N | 67.443 lbf
Cable Crush Resistance, maximum 50 N/mm | 285.507 lb/in
Flex 25 cycles

Optical Specifications

Fiber Type G.657.A2, TeraSPEED®

Optical Specifications, Wavelength Specific

Attenuation, maximum 0.30 dB/km @ 1,550 nm | 0.40 dB/km @ 1,310 nm

Environmental Specifications

Installation temperature -20 °C to +70 °C (-4 °F to +158 °F)
Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space Low Smoke Zero Halogen (LSZH)
