60945-4

  • Available in:
  • North America
  • EMEA
  • Latin America
  • Australia/New Zealand

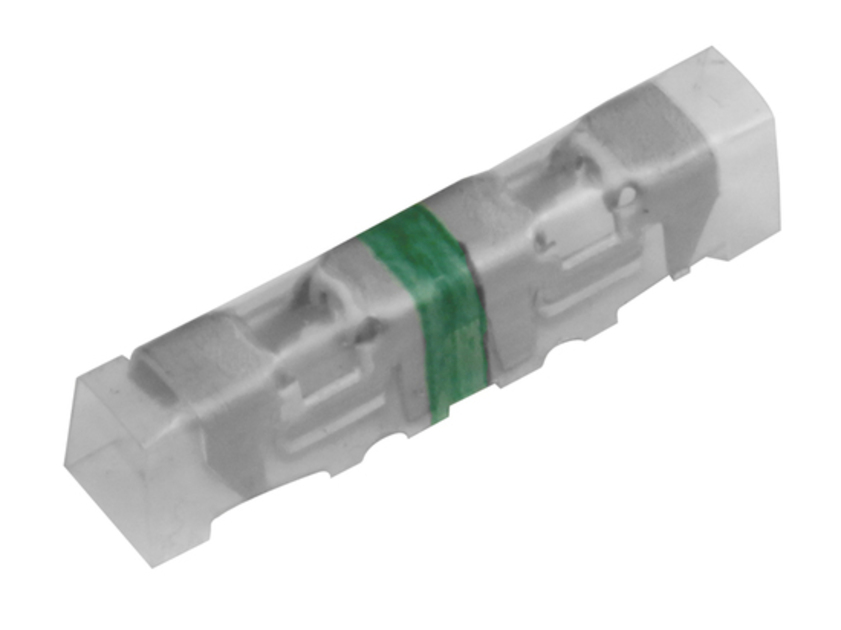

PICABOND® Connector, 1000 loose piece, 400 Vdc, green
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • Lightweight, compact, and economical means of splicing multiconductor telephone cable
  • No prestripping or cutting required, can tap without service interruptions, eliminates “turndowns”
  • Color-coded to indicate size and type of wire; used for butt, straight, bridge and half-tap splicing applications
Specifications

Product Classification

Regional Availability North America | EMEA | Latin America | Australia/New Zealand
Product Type Splice
Product Brand PICABOND®
Product Series PICABOND

General Specifications

Connector Color Code Green
Connector Sealant Unfilled
Connector Splicing Type Half-tap | Straight (In-line) | Bridge | Full bridge | Butt

Dimensions

Compatible Conductor Gauge, solid 26–22 AWG

Electrical Specifications

Safety Voltage Rating 400 Vdc

Material Specifications

Contact Base Material Phosphor bronze
Contact Plating Material Tin
Insulation Material Paper or Pulp | Air Core PIC

Environmental Specifications

Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Environmental Space Outdoor

Packaging and Weights

Packaging quantity 1000
Packaging Type Loose piece

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance

Product Classification

Regional Availability North America | EMEA | Latin America | Australia/New Zealand
Product Type Splice
Product Brand PICABOND®
Product Series PICABOND

General Specifications

Connector Color Code Green
Connector Sealant Unfilled
Connector Splicing Type Half-tap | Straight (In-line) | Bridge | Full bridge | Butt

Dimensions

Compatible Conductor Gauge, solid 26–22 AWG

Electrical Specifications

Safety Voltage Rating 400 Vdc

Material Specifications

Contact Base Material Phosphor bronze
Contact Plating Material Tin
Insulation Material Paper or Pulp | Air Core PIC

Environmental Specifications

Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Environmental Space Outdoor

Packaging and Weights

Packaging quantity 1000
Packaging Type Loose piece

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
