2153420-1
- Available in:
- EMEA

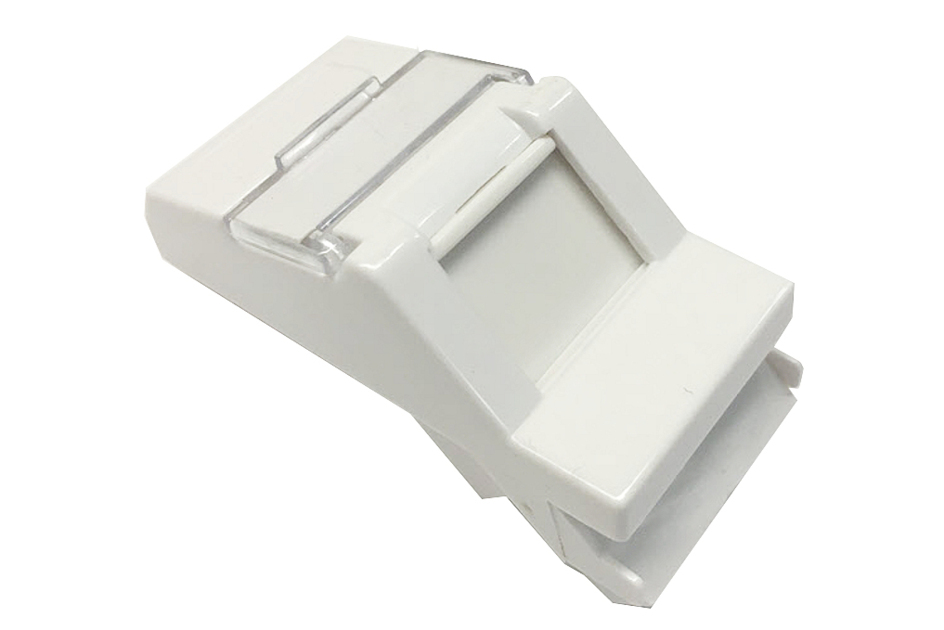

Single Angled Shuttered Faceplate Module, white
Specifications
Product classification
| Regional Availability | EMEA |
| Portfolio | NETCONNECT® |
| Product Type | Insert kit |
General Specifications
| Application | Used with E Series outlets | Used with KJ Series outlets |
| Color | White |
| Mounting | Flush |
| Outlet Orientation | Angled |
| Total Ports, quantity | 1 |
Dimensions
| Height | 49.74 mm | 1.958 in |
| Compatible Knockout Width | 25 mm |
| Width | 24.94 mm | 0.982 in |
| Depth | 30 mm | 1.181 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic |
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Regional Availability | EMEA |
| Portfolio | NETCONNECT® |
| Product Type | Insert kit |
General Specifications
| Application | Used with E Series outlets | Used with KJ Series outlets |
| Color | White |
| Mounting | Flush |
| Outlet Orientation | Angled |
| Total Ports, quantity | 1 |
Dimensions
| Height | 49.74 mm | 1.958 in |
| Compatible Knockout Width | 25 mm |
| Width | 24.94 mm | 0.982 in |
| Depth | 30 mm | 1.181 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic |
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
