760250078 | M10L-262 AB

Base Product: M10L

  • Available in:
  • Latin America
  • North America

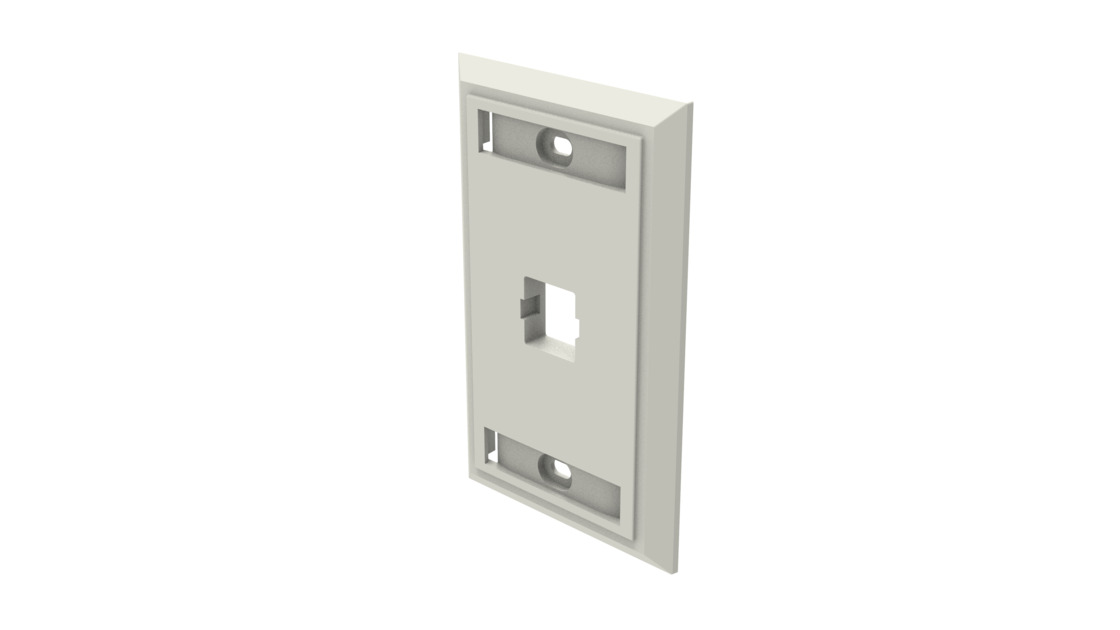

Faceplate Kit, M10L-262, electric white, antimicrobial, eco-bulk

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
Features and Benefits
L Type Flush Mounted Faceplate, 2 Port Electric white with Antimicrobial additive. The small raised "M" on the pack of the faceplate indicates the resin contains the antimicrobial additive. Faceplates passed testing per ISO 22196 (Measurement of antibacterial activity on plastics and other non-porous surfaces).

Product Classification

Regional Availability Latin America | North America
Portfolio CommScope®
Product Type Faceplate kit
Product Series M Series

General Specifications

Application Used with M Series modular information outlet
Color Electrical white
Mounting Flush
Total Ports, quantity 1

Dimensions

Height 115.824 mm | 4.56 in
Width 71.374 mm | 2.81 in
Depth 7.366 mm | 0.29 in

Material Specifications

Material Type Polycarbonate ABS (PC-ABS)

Environmental Specifications

Environmental Space Indoor
Flammability Rating UL 94 V-0
Safety Standard cUL US 1863

Packaging and Weights

Included Faceplate (1) | Label (2) | Label cover (2) | Mounting screw (2)
Packaging quantity 1
Weight, net 0.036 kg | 0.08 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
