760257775 | FPDS-BS-2P-NL-SW

  • Available in:
  • Asia
  • Middle East/Africa

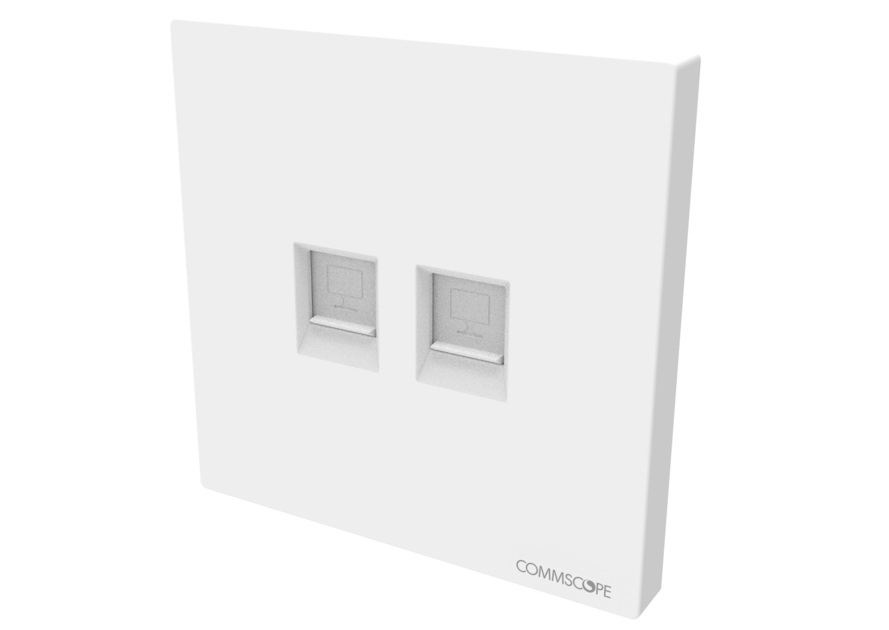

Faceplate Kit, Decorator, two ports, British Standard style, no label, signal white

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia | Middle East/Africa
Portfolio CommScope®
Product Type Faceplate kit
Product Series Universal Opening Series

General Specifications

Application Used with KJ Series outlets with adapter | Used with M Series modular information outlet | Used with SL Series outlets
Color Signal white
Integrated Dust Cover Type Sliding
Mounting Flush
Outlet Orientation Flat
Port Marking Type Label
Total Ports, quantity 2

Dimensions

Height 85.979 mm | 3.385 in
Width 85.979 mm | 3.385 in
Depth 9.398 mm | 0.37 in

Material Specifications

Material Type High-impact, flame retardant, thermoplastic, UL listed material

Environmental Specifications

Flammability Rating UL 94 V-0

Packaging and Weights

Packaging quantity 1
Packaging Type Bag
Weight, net 0.09 kg | 0.198 lb

Product classification

Regional Availability Asia | Middle East/Africa
Portfolio CommScope®
Product Type Faceplate kit
Product Series Universal Opening Series

General Specifications

Application Used with KJ Series outlets with adapter | Used with M Series modular information outlet | Used with SL Series outlets
Color Signal white
Integrated Dust Cover Type Sliding
Mounting Flush
Outlet Orientation Flat
Port Marking Type Label
Total Ports, quantity 2

Dimensions

Height 85.979 mm | 3.385 in
Width 85.979 mm | 3.385 in
Depth 9.398 mm | 0.37 in

Material Specifications

Material Type High-impact, flame retardant, thermoplastic, UL listed material

Environmental Specifications

Flammability Rating UL 94 V-0

Packaging and Weights

Packaging quantity 1
Packaging Type Bag
Weight, net 0.09 kg | 0.198 lb
