  6. 760118331 | M2400A-1U-PS
Warning Icon
This product was discontinued on: January 31, 2025

For other alternatives, please contact us for more information.

1 Replacement products available
  • 760118349 | M2400A-1U

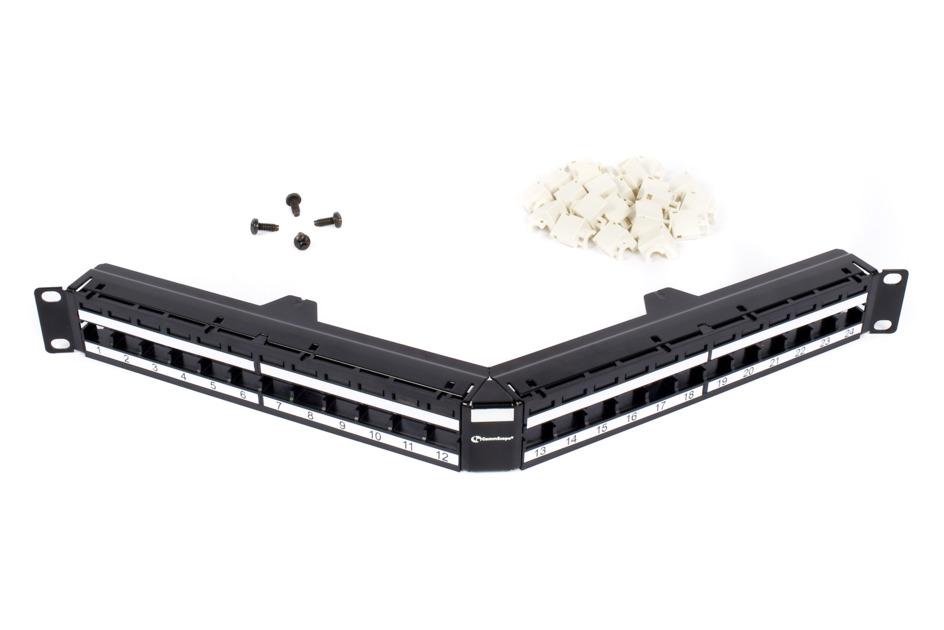

    M2400 1U Angled Modular Panel, 24 port (MGS600 / MGS400 / MPS100 / UNJ10GT / UNJ600T / UNJ10G / UNJ600 / UNJ500 ), Black

760118331 | M2400A-1U-PS

Base Product: M2400-PANELS

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

M2400 1U Angled Modular Panel, 24 port (MPS100 / UNJ10G / UNJ600 / UNJ600T / UNJ500), Black

Specifications
Finish making your selections or clear them to view relevant specifications.

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type RJ45 patch panel
Product Series M Series

General Specifications

ANSI/TIA Category NA
Cable Type Unshielded
Color Black
Intelligence Type Passive
Panel Style Angled
Rack Type EIA 19 in
Rack Units 1
Total Ports, quantity 24

Dimensions

Height 43.7 mm | 1.72 in
Width 482.6 mm | 19 in
Depth 138.1 mm | 5.437 in

Material Specifications

Material Type High-impact, flame retardant, thermoplastic | Powder-coated steel

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity Up to 95%, non-condensing
Flammability Rating UL 94 V-0
Safety Standard UL | cUL

Packaging and Weights

Packaging Material Eco-friendly, single-use plastics-free
Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
