760237045 | CPPR-UDDM-SL-2U-48

Base Product: DDM-SL-PANELS

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

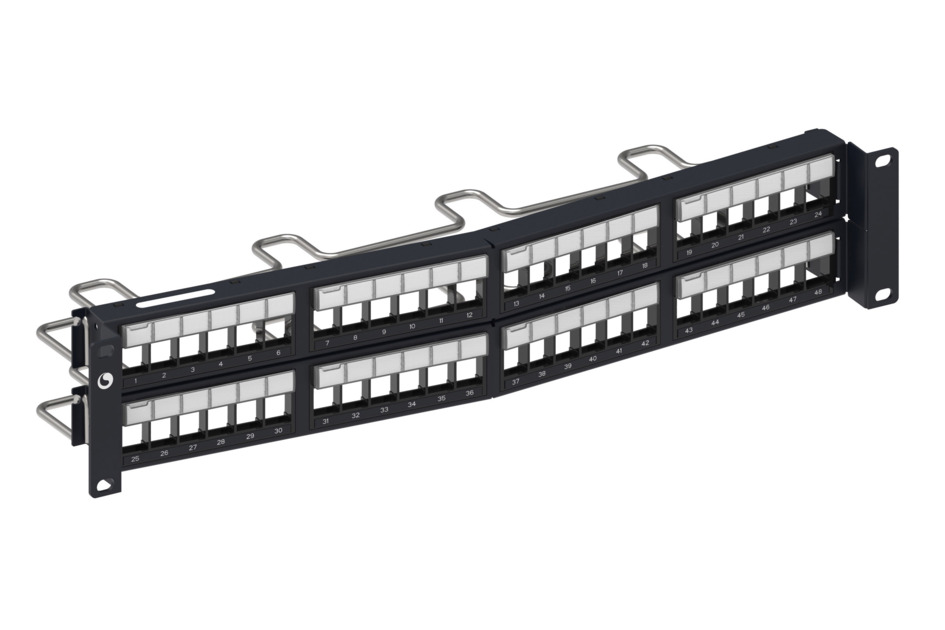

Unshielded Recessed Angled Discrete Distribution Module Panel, SL, 2U, 48 port, Black

Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type RJ45 patch panel
Product Series SL Series

General Specifications

ANSI/TIA Category NA
Cable Type Unshielded
Color Black
Intelligence Type Passive
Panel Style Angled recessed
Rack Type EIA 19 in
Rack Units 2
Total Ports, quantity 48

Dimensions

Height 88.1 mm | 3.469 in
Width 482.6 mm | 19 in
Depth, with cable management 138.7 mm | 5.461 in

Material Specifications

Material Type High-impact, flame retardant, thermoplastic | Powder-coated steel

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity Up to 95%, non-condensing
Flammability Rating UL 94 V-0
Safety Standard UL | cUL

Packaging and Weights

Packaging Material Eco-friendly, single-use plastics-free
Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
RCM Compliant to electrical safety & telecommunications requirements
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
