FACT-CABLED-MODULES
Base Product
- Available in:
- EMEA
- North America

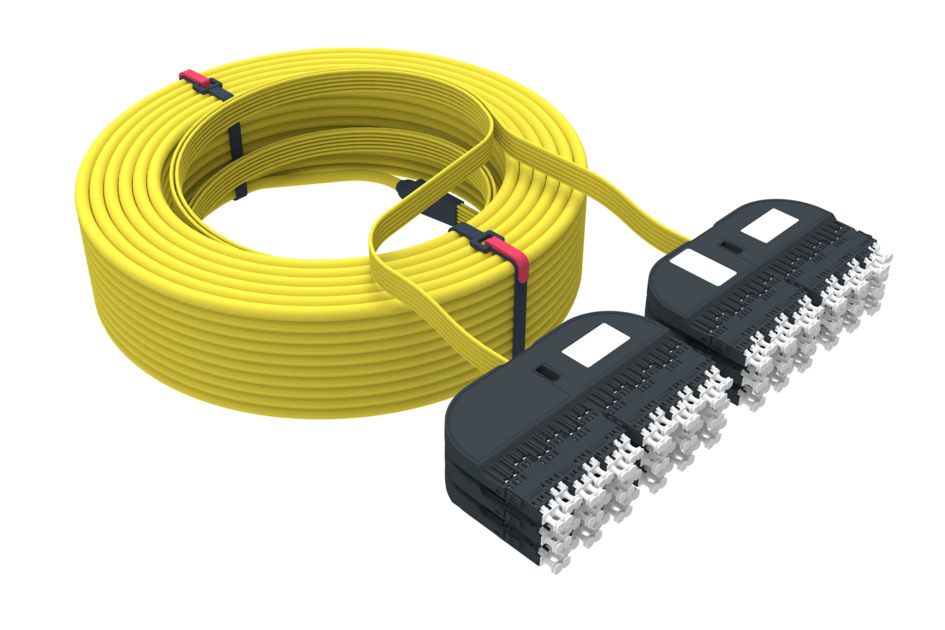

FACT® CMOD Cabled Modules for FACT NG4 Panels
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
FACT CMOD Cabled modules with LC connectivity enable the routing of fiber cable to the frame, where multiple connectors are terminated to the frame with a single click in a FACT NG4 tray. Cabled modules with integrated connectors ensure the cables are kept in sequential order and help prevent accidental fiber breakage or disruption to adjacent fibers during installation, enable technicians to route and install higher fiber counts faster and more easily, while simplifying inventory and ordering.
This module also supports connection to top-of-rack systems such as CommScope’s Rapid panels or MFPS panel. Available with indoor Micro cable or rollable ribbon, connectorized or stub end
This module also supports connection to top-of-rack systems such as CommScope’s Rapid panels or MFPS panel. Available with indoor Micro cable or rollable ribbon, connectorized or stub end
Specifications
Product classification
| Regional Availability | EMEA | North America |
| Portfolio | CommScope® |
| Product Type | Fiber cabled module |
| Product Brand | FACT® |
| Product Series | FACT |
General Specifications
| Body Style | Left orientation | Right orientation |
| Cable Color | Yellow |
| Interface, front | LC/UPC | SC/APC | SC/UPC | LC/APC |
| Interface, rear | LC/UPC | SC/APC | SC/UPC | Stub tail | LC/APC |
Optical Specifications
| Fiber Mode | Singlemode |
Environmental Specifications
| Operating Temperature | -5 °C to +40 °C (+23 °F to +104 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 85%, non-condensing |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Regional Availability | EMEA | North America |
| Portfolio | CommScope® |
| Product Type | Fiber cabled module |
| Product Brand | FACT® |
| Product Series | FACT |
General Specifications
| Body Style | Left orientation | Right orientation |
| Cable Color | Yellow |
| Interface, front | LC/UPC | SC/APC | SC/UPC | LC/APC |
| Interface, rear | LC/UPC | SC/APC | SC/UPC | Stub tail | LC/APC |
Optical Specifications
| Fiber Mode | Singlemode |
Environmental Specifications
| Operating Temperature | -5 °C to +40 °C (+23 °F to +104 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 85%, non-condensing |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
