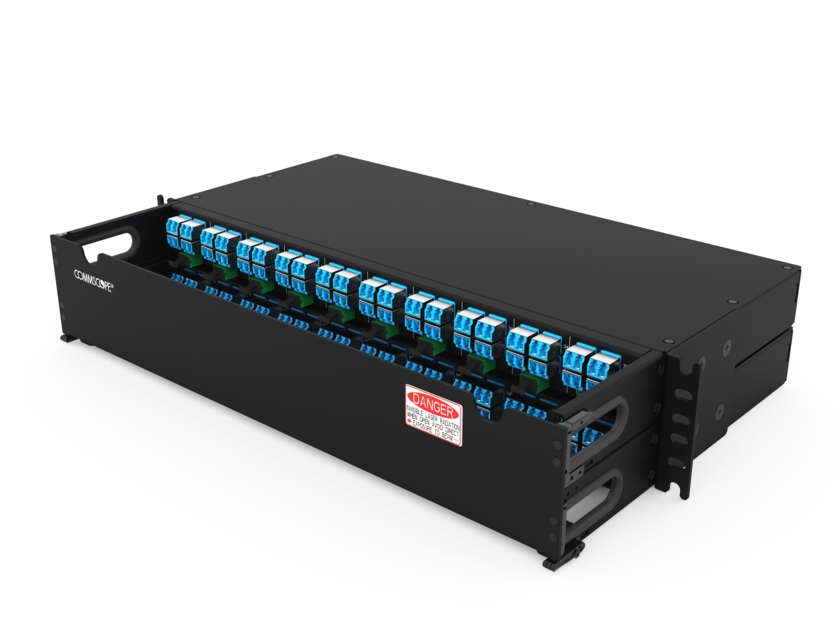

FD Fiber patch panel

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of FD-PANELS by selecting options

Features and Benefits

FD patch panels interface with QSFP ports to easily break them out in LC connections. The MPO and LC ports are both front facing for easy mapping and patching.

FD Patch panels are offered in 1RU and 2RU versions with method A and method B polarity configurations.

Provide ultra-high density patching to achieve maximum density of 160 LC fiber connections in 2RU
FD fiber panels are offered in singlemode and multimode configurations

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber patch panel
Product Series	FD

General Specifications

Color	Black
Interface, front	MPO \| LC/UPC
Patch Cord Routing	Left sided \| Right sided
Rack Type	EIA 19 in
Shelf Movement	Fixed

Optical Specifications

Fiber Mode

Multimode | Singlemode

Environmental Specifications

Safety Standard

UL 60950

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
