This product was discontinued on: December 31, 2025

For other alternatives, please contact us for more information.

1 Replacement products available
  • 760255955 | PPL-4U-W
    Propel 4RU sliding tray white fiber panel, accepts Propel ULL modules or adapter packs, providing up to 288 duplex LC ports, 288 MPO ports or 576 SN ports (1152f)

EHD-4U-W

Base Product: EHD-PANELS

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

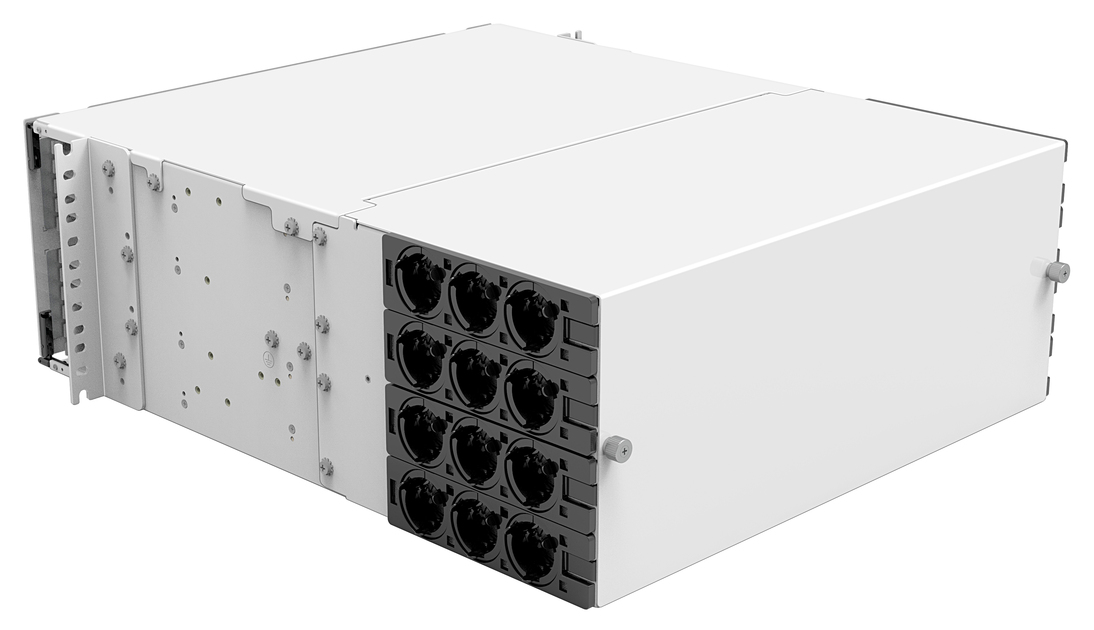

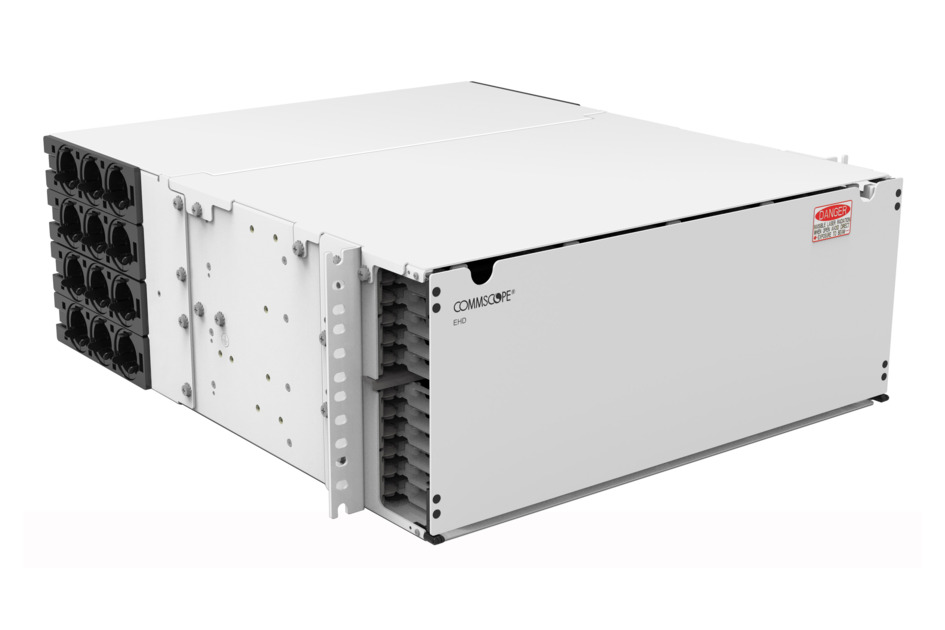

SYSTIMAX® EHD 4U sliding tray fiber panel, accepts (24) EHD ULL modules, splice cassettes or MPO panels, providing up to 288 duplex LC ports or up to 288 MPO ports, white, High Speed Migration

Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber patch panel
Product Series EHD

General Specifications

Application Accepts 24 EHD Universal Modules, or EHD MPO adapter packs
Color White
Interface, front Unloaded
Rack Units 4
Shelf Movement Sliding
Total Ports, quantity 0

Dimensions

Height 177.8 mm | 7 in
Width 482.6 mm | 19 in
Depth 538.48 mm | 21.2 in

Packaging and Weights

Weight, net 15.604 kg | 34.4 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
