760238085 | DM12iP-24LC-SM-ULL

Base Product: G2-MODULES

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

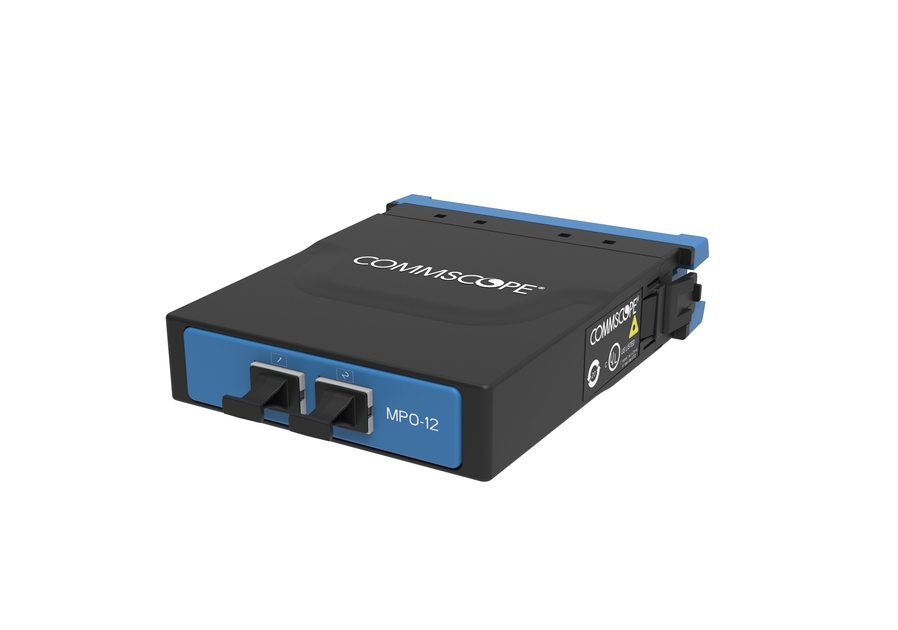

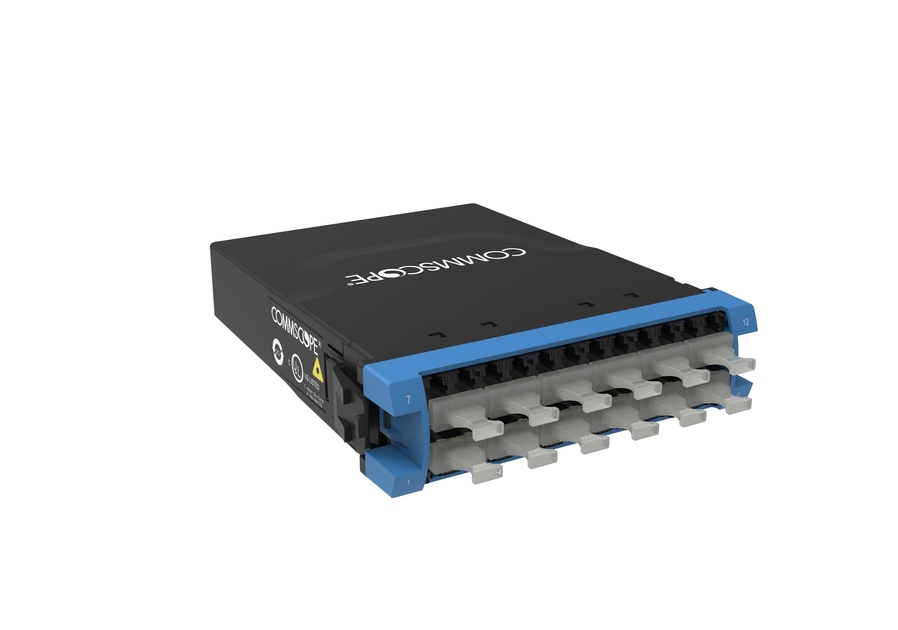

G2 ULL Singlemode MPO-12 Distribution Module, 2x12F MPO unpinned to 24F LC Blue, Method B Enhanced, iPatch Ready

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber module
Product Brand SYSTIMAX ULL | TeraSPEED®

General Specifications

Functionality Breakout
Adapters, quantity, front 24
Adapters, quantity, rear 2
Color, front Blue
Color, rear Blue
Data Module Type Standard
Intelligence Type iPatch® ready
Interface, front LC/UPC
Interface Feature, front Dust caps
Interface, rear MPO
Interface Feature, rear Key up | MPO Non-Pinned
Polarity Method B Enhanced (ULL)
Shuttered No
Total Fibers, quantity 24
Total Ports, quantity, front 24

Dimensions

Height 24.64 mm | 0.97 in
Width 94 mm | 3.701 in
Depth 113.28 mm | 4.46 in

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2
Insertion Loss, maximum 0.6 dB

Environmental Specifications

Qualification Standards TIA/EIA-568-C.3
Safety Standard cUL US 1863

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
