L-LN

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

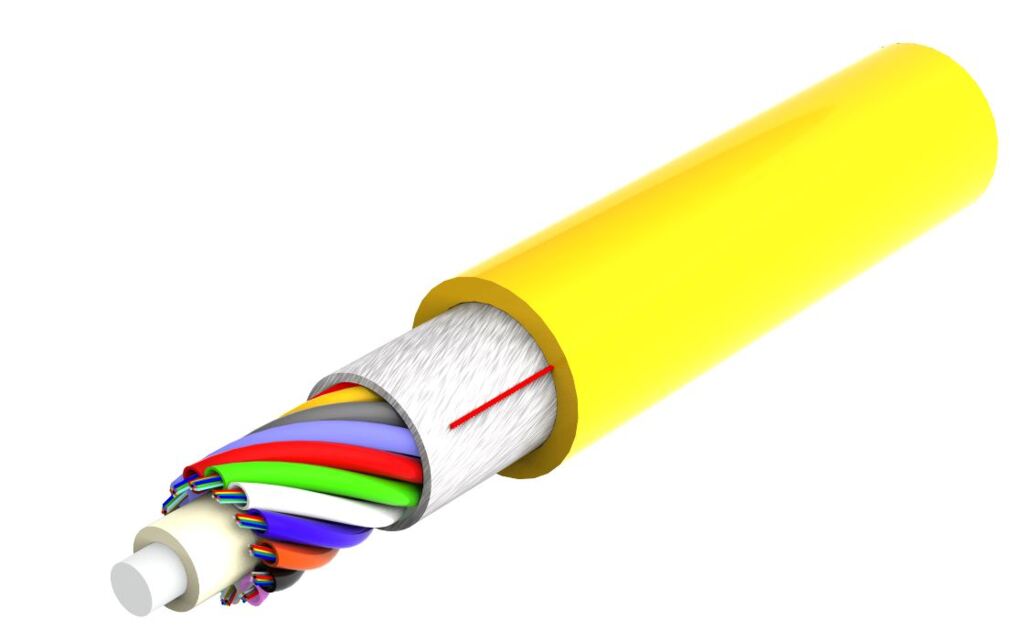

Fiber Optic Cable, Indoor Zero Halogen, CPR-only flame rated, Stranded Loose Tube All-Dielectric

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of L-LN by selecting options

Product	Jacket Marking	Regional Availability	Portfolio	Product Type	Product Series	Cable Type	Construction Type	Jacket Color	Total Fiber Count	Fiber Type	Environmental Space	EN50575 CPR Cable EuroClass Fire Performance	EN50575 CPR Cable EuroClass Smoke Rating	EN50575 CPR Cable EuroClass Droplets Rating	EN50575 CPR Cable EuroClass Acidity Rating
760243186 \| L-144-LN-8F-M12YL/14D/GY/C Fiber indoor cable, Single Jacket All-Dielectric, 144 fiber, Gel-Free, Stranded Microsheath Tube, Singlemode, G.657.A1, Meters jacket marking, Yellow jacket color, Cca Flame rating. Provides Rodent Resistance Specifications	Meters	Asia \| Australia/New Zealand \| EMEA \| Latin America	CommScope®	Fiber indoor cable	L-LN	Stranded microsheath tube	Non-armored	Yellow	144	G.657.A1 \| TeraSPEED®	Low Smoke Zero Halogen (LSZH)	Cca	s1a	d0	a1
760244552 \| L-012-LN-8F-M12YL/14D/AY/D-DE35 Fiber indoor cable, Single Jacket All-Dielectric, Gel-Free, Stranded Microsheath Tube, 12 fibers (RED Tube), Singlemode, G.657.A1, Meters jacket marking, Yellow jacket color, Dca Flame rating	Meters	Asia \| Australia/New Zealand \| EMEA	CommScope®	Fiber indoor cable	L-LN	Stranded microsheath tube	Non-armored	Yellow	12	G.657.A1 \| TeraSPEED®	Low Smoke Zero Halogen (LSZH)	Dca	s1	d1	a1
760244553 \| L-048-LN-8F-M12YL/14D/AY/D-DE35 Fiber indoor cable, Single Jacket All-Dielectric, Gel-Free, Stranded Microsheath Tube cable, 48 fiber (Red, Blue, Green, Yellow Tubes), Singlemode G.657.A1, Yellow jacket color, Dca flame rating. Provides Rodent Resistance Specifications	Meters	Asia \| Australia/New Zealand \| EMEA	CommScope®	Fiber indoor cable	L-LN	Stranded microsheath tube	Non-armored	Yellow	48	G.657.A1 \| TeraSPEED®	Low Smoke Zero Halogen (LSZH)	Dca	s1	d1	a1
760245018 \| L-096-LN-8F-M12YL/14D/GY/C Fiber indoor cable, Single Jacket All-Dielectric, 96 fiber, Gel-Free, Stranded Microsheath Tube, Singlemode, G.657.A1, Meters jacket marking, Yellow jacket color, Cca Flame rating. Provides Rodent Resistance Specifications	Meters	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Fiber indoor cable	L-LN	Stranded microsheath tube	Non-armored	Yellow	96	G.657.A1 \| TeraSPEED®	Low Smoke Zero Halogen (LSZH)	Cca	s1a	d0	a1
760245019 \| L-072-LN-8F-M12YL/14D/GY/C Fiber indoor cable, Single Jacket All-Dielectric, Gel-Free, 72 fiber, Stranded Microsheath Tube, Singlemode, G.657.A1, Meters jacket marking, Yellow jacket color, Cca Flame rating. Provides Rodent Resistance Specifications	Meters	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Fiber indoor cable	L-LN	Stranded microsheath tube	Non-armored	Yellow	72	G.657.A1 \| TeraSPEED®	Low Smoke Zero Halogen (LSZH)	Cca	s1a	d0	a1
760245020 \| L-048-LN-8F-M12YL/14D/GY/C Fiber indoor cable, Single Jacket All-Dielectric, Gel-Free, Stranded Microsheath Tube cable, 48 fiber, Singlemode G.657.A1, Yellow jacket color, Cca flame rating. Provides Rodent Resistance Specifications	Meters	Asia \| Australia/New Zealand \| EMEA \| Latin America	CommScope®	Fiber indoor cable	L-LN	Stranded microsheath tube	Non-armored	Yellow	48	G.657.A1 \| TeraSPEED®	Low Smoke Zero Halogen (LSZH)	Cca	s1a	d0	a1
760245021 \| L-024-LN-8F-M12YL/14D/GY/C Fiber indoor cable, Single Jacket All-Dielectric, Gel-Free, Stranded Microsheath Tube, 24 fibers, Singlemode, G.657.A1, Meters jacket marking, Yellow jacket color, Cca Flame rating. Provides Rodent Resistance Specifications	Meters	Asia \| Australia/New Zealand \| EMEA \| Latin America	CommScope®	Fiber indoor cable	L-LN	Stranded microsheath tube	Non-armored	Yellow	24	G.657.A1 \| TeraSPEED®	Low Smoke Zero Halogen (LSZH)	Cca	s1a	d0	a1
760245022 \| L-012-LN-8F-M12YL/14D/GY/C Fiber indoor cable, Single Jacket All-Dielectric, Gel-Free, Stranded Microsheath Tube, 12 fibers, Singlemode, G.657.A1, Meters jacket marking, Yellow jacket color, Cca Flame rating. Provides Rodent Resistance Specifications	Meters	Asia \| Australia/New Zealand \| EMEA \| Latin America	CommScope®	Fiber indoor cable	L-LN	Stranded microsheath tube	Non-armored	Yellow	12	G.657.A1 \| TeraSPEED®	Low Smoke Zero Halogen (LSZH)	Cca	s1a	d0	a1

Features and Benefits

CommScope’s indoor fiber cables are positioned for Data Center or Central Office applications
Superior mechanical and optical performance with unmatched stability and quality
Available Jacket Colors: Aqua and Yellow

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber indoor cable
Product Series	L-LN

General Specifications

Cable Type	Stranded microsheath tube
Construction Type	Non-armored
Subunit Type	Gel-free

Ordering Tree

Click on image to enlarge.

Material Specifications

Inner Jacket Material

Low Smoke Zero Halogen (LSZH)

Environmental Specifications

Installation temperature	0 °C to +50 °C (+32 °F to +122 °F)
Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space	Low Smoke Zero Halogen (LSZH)
