2843032-3 | MP-Boot-S/SL-AB
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

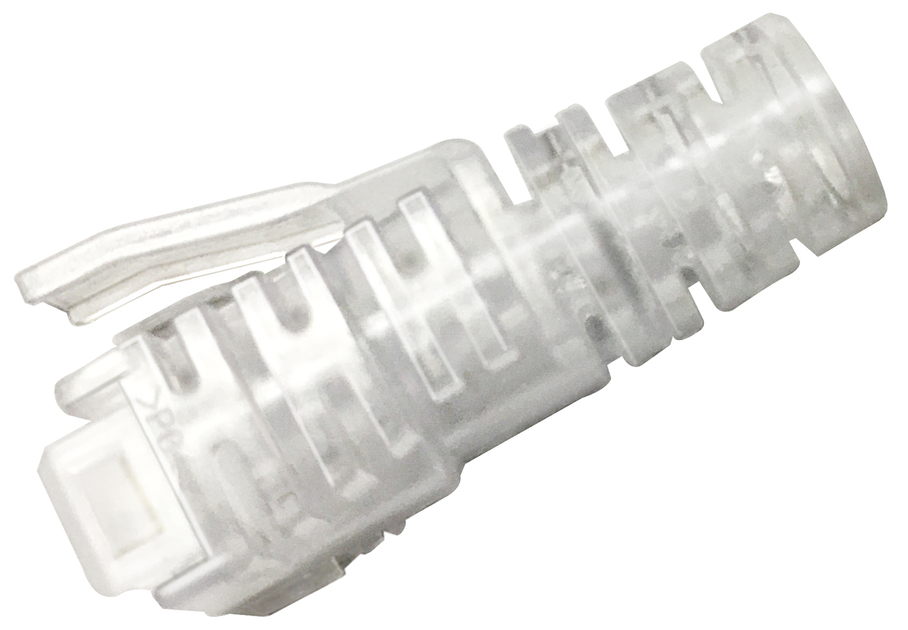

Modular Plug Shielded Slim-Line Boot for Category 6A/6 and Category 5e EMT Plugs, 4.7 to 6.0 mm, transparent
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Modular plug boot |
General Specifications
| Boot Feature | Color-clip compatible | Pull-tab compatible | Shielded | Slimline | Snagless |
| Color | Clear |
| Compatible Plug Type | Cat 5e | Cat 6 | Cat 6A |
Dimensions
| Compatible Cable Diameter, maximum | 6 mm | 0.236 in |
| Compatible Cable Diameter, minimum | 4.7 mm | 0.185 in |
Packaging and Weights
| Included | Strain relief |
| Packaging quantity | 100 |
| Packaging Type | Bag | Box |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Modular plug boot |
General Specifications
| Boot Feature | Color-clip compatible | Pull-tab compatible | Shielded | Slimline | Snagless |
| Color | Clear |
| Compatible Plug Type | Cat 5e | Cat 6 | Cat 6A |
Dimensions
| Compatible Cable Diameter, maximum | 6 mm | 0.236 in |
| Compatible Cable Diameter, minimum | 4.7 mm | 0.185 in |
Packaging and Weights
| Included | Strain relief |
| Packaging quantity | 100 |
| Packaging Type | Bag | Box |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
