760248322 | G2-SP-12SCW-PT-ANT

Base Product: G2-SPLICE-CASSETTES

  • Available in:
  • EMEA

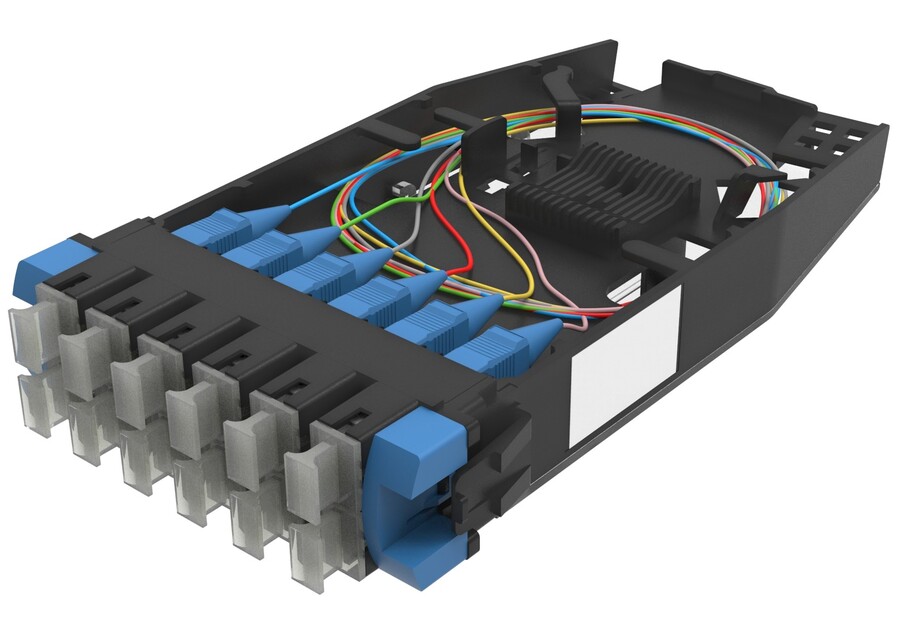

G2 Splice Cassette, 12SC/UPC, OS2, with pigtails

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability EMEA
Portfolio CommScope®
Product Type Fiber cassette with pigtails
Product Series G2

General Specifications

Color, front Blue
Interface, front SC/UPC
Interface, rear Stranded pigtail
Polarity Pairs, straight
Shuttered No
Total Fibers, quantity 12

Dimensions

Height 26.416 mm | 1.04 in
Width 96.52 mm | 3.8 in
Depth 165.354 mm | 6.51 in

Material Specifications

Alignment Sleeve Material Zirconia

Optical Specifications

Fiber Mode Singlemode
Fiber Type G657 A1 easy strip buffer fiber | OS2
Insertion Loss, maximum 0.55 dB

Environmental Specifications

Qualification Standards IEC 61753-1 | TIA-568.3-D
Safety Standard UL

Packaging and Weights

Included ANT holder
Packaging quantity 1
Weight, net 0.116 kg | 0.2557 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant

Product classification

Regional Availability EMEA
Portfolio CommScope®
Product Type Fiber cassette with pigtails
Product Series G2

General Specifications

Color, front Blue
Interface, front SC/UPC
Interface, rear Stranded pigtail
Polarity Pairs, straight
Shuttered No
Total Fibers, quantity 12

Dimensions

Height 26.416 mm | 1.04 in
Width 96.52 mm | 3.8 in
Depth 165.354 mm | 6.51 in

Material Specifications

Alignment Sleeve Material Zirconia

Optical Specifications

Fiber Mode Singlemode
Fiber Type G657 A1 easy strip buffer fiber | OS2
Insertion Loss, maximum 0.55 dB

Environmental Specifications

Qualification Standards IEC 61753-1 | TIA-568.3-D
Safety Standard UL

Packaging and Weights

Included ANT holder
Packaging quantity 1
Weight, net 0.116 kg | 0.2557 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
