760246246 | G2ip-SP-12LC

Base Product: G2-SPLICE-CASSETTES

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

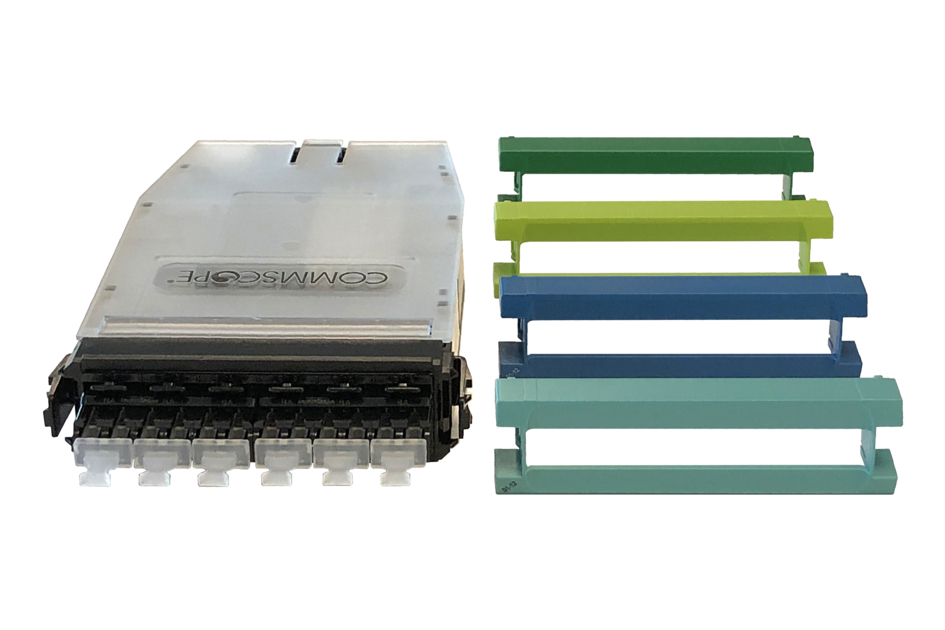

G2 Splice Cassette, 12LC without shutters, intelligent-ready, no pigtails

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio SYSTIMAX®
Product Type Fiber cassette
Product Series G2

General Specifications

Color, front Aqua | Blue | Green | Lime green
Intelligence Type iPatch® ready
Interface, front LC/UPC
Interface Feature, front Dust caps
Interface, rear No pigtail
Shuttered No
Total Fibers, quantity 12

Dimensions

Height 26.416 mm | 1.04 in
Width 96.52 mm | 3.8 in
Depth 165.354 mm | 6.51 in

Environmental Specifications

Qualification Standards IEC 61753-1 | TIA-568.3-D
Safety Standard UL

Packaging and Weights

Included SMOUV holder | SMOUV splice protection
Packaging quantity 1
Weight, net 0.107 kg | 0.2348 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio SYSTIMAX®
Product Type Fiber cassette
Product Series G2

General Specifications

Color, front Aqua | Blue | Green | Lime green
Intelligence Type iPatch® ready
Interface, front LC/UPC
Interface Feature, front Dust caps
Interface, rear No pigtail
Shuttered No
Total Fibers, quantity 12

Dimensions

Height 26.416 mm | 1.04 in
Width 96.52 mm | 3.8 in
Depth 165.354 mm | 6.51 in

Environmental Specifications

Qualification Standards IEC 61753-1 | TIA-568.3-D
Safety Standard UL

Packaging and Weights

Included SMOUV holder | SMOUV splice protection
Packaging quantity 1
Weight, net 0.107 kg | 0.2348 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
