760245548 | ODF-SPLCAB-24
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

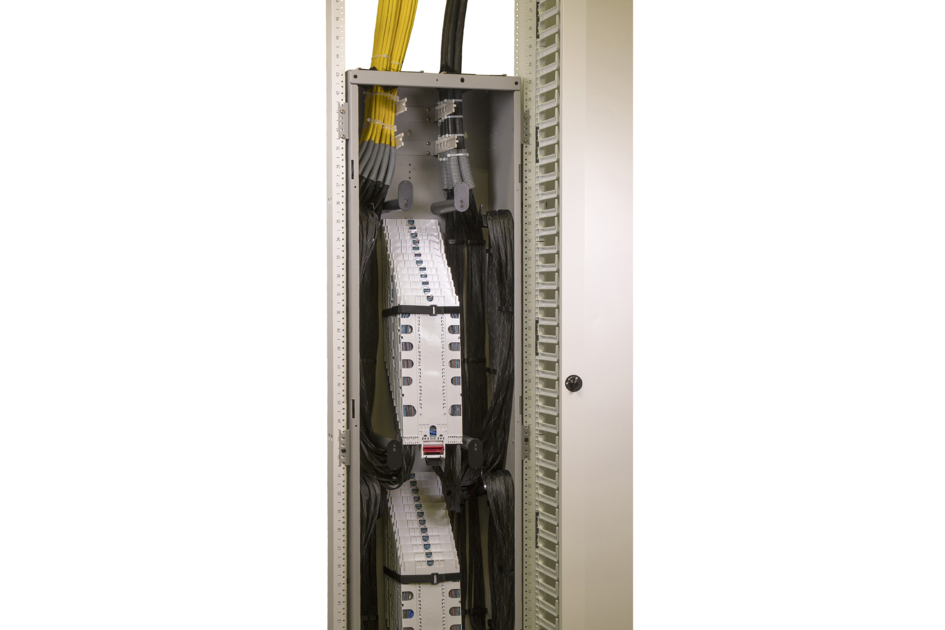

UMSC (Universal Mounted Splice Cabinet) with up to 6912 fiber splices capacity (Rollable ribbon cables), exit up, gray
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Universal Mounted Splice Cabinet |
| Product Series | ODF |
General Specifications
| Access | Front |
| Cable Entry Location | Top |
| Cable Exit Location | Top |
| Color | Gray |
| Growth Configuration | Unloaded |
| Mounting | Back to Back | Rack, EIA 19 in | Rack, EIA 23 in | Wall |
| Splice Trays Included, quantity | 0 |
| Splicing Capacity Note | Up to 6912 Rollable Ribbon Splices |
| Splicing Capacity, maximum | 6912 |
Dimensions
| Height | 1747.3 mm | 68.791 in |
| Width | 443 mm | 17.441 in |
| Depth | 287.9 mm | 11.335 in |
Environmental Specifications
| Environmental Space | Indoor |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Universal Mounted Splice Cabinet |
| Product Series | ODF |
General Specifications
| Access | Front |
| Cable Entry Location | Top |
| Cable Exit Location | Top |
| Color | Gray |
| Growth Configuration | Unloaded |
| Mounting | Back to Back | Rack, EIA 19 in | Rack, EIA 23 in | Wall |
| Splice Trays Included, quantity | 0 |
| Splicing Capacity Note | Up to 6912 Rollable Ribbon Splices |
| Splicing Capacity, maximum | 6912 |
Dimensions
| Height | 1747.3 mm | 68.791 in |
| Width | 443 mm | 17.441 in |
| Depth | 287.9 mm | 11.335 in |
Environmental Specifications
| Environmental Space | Indoor |
