FPX-AF-24APL08SP3

Base Product: FPX-ADAPTER-PACKS

  • Available in:
  • North America

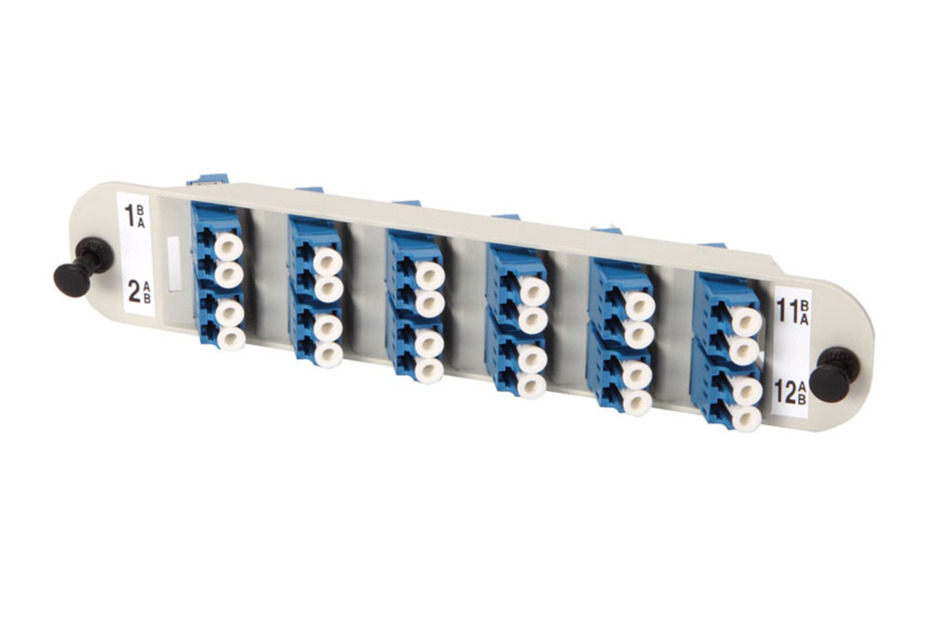

FPX Fiber Optic Adapter Pack with 3m Stranded Pigtail, Singlemode, 24 fiber, LC/UPC adapter, left, blue, putty white

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability North America
Product Type Fiber adapter pack with pigtails
Product Series FPX

General Specifications

Application For use with FPX panels
Adapter Color Blue
Adapters, quantity, front 12
Body Style Duplex | Left orientation
Color, front Putty white
Interface LC/UPC
Pigtail Assembly Type Color-coded, 900 µm | Pigtail bundle
Pigtails Included, quantity 24
Total Fibers, quantity 24
Total Ports, quantity, front 24

Dimensions

Height 33.02 mm | 1.3 in
Width 176.53 mm | 6.95 in
Pigtail Length 3 m | 9.843 ft

Ordering Tree

Click on image to enlarge.

Optical Specifications

Fiber Mode Singlemode
Fiber Type OS2
Insertion Loss, maximum 0.3 dB
Return Loss, minimum 55 dB

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature -40 °C to +85 °C (-40 °F to +185 °F)

Packaging and Weights

Packaging quantity 1
Packaging Type Bag | Carton

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
