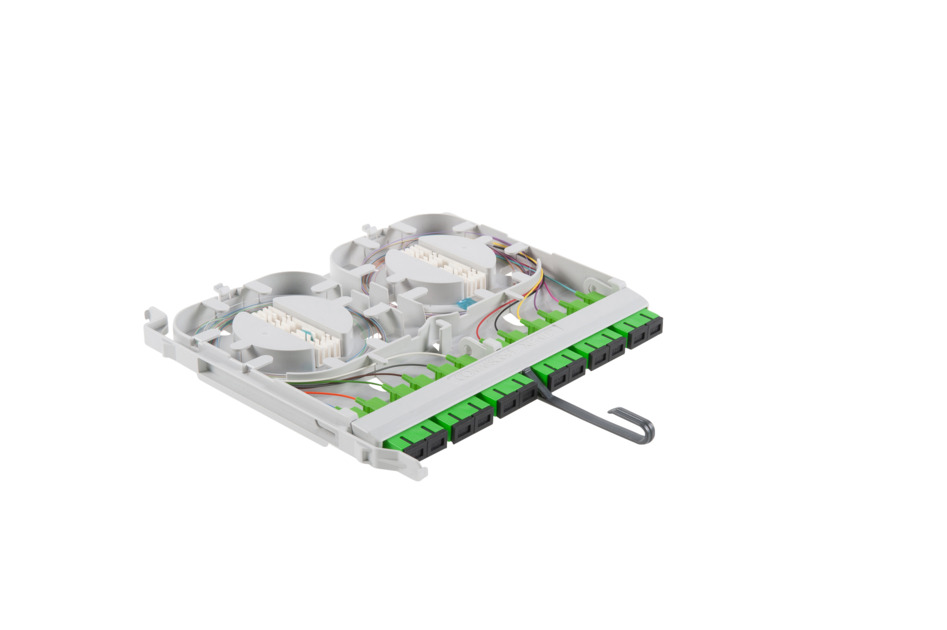

CommScope XPND™ Singlemode Splice Cassette, stranded, 12 SC APC
Features and Benefits
- Can be installed and removed from front or rear of panel
Specifications
Product classification
| Regional Availability | Latin America | North America |
| Product Type | Fiber cassette with pigtails |
| Product Brand | CommScope XPND™ |
General Specifications
| Adapter Color | Green |
| Color, front | Green |
| Interface, front | SC/APC |
| Interface, rear | Stranded pigtail |
| Total Fibers, quantity | 12 |
| Total Ports, quantity | 12 |
Dimensions
| Height | 19 mm | 0.748031 in |
| Width | 202.5 mm | 7.97244 in |
| Depth | 207 mm | 8.14961 in |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A1 |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Regional Availability | Latin America | North America |
| Product Type | Fiber cassette with pigtails |
| Product Brand | CommScope XPND™ |
General Specifications
| Adapter Color | Green |
| Color, front | Green |
| Interface, front | SC/APC |
| Interface, rear | Stranded pigtail |
| Total Fibers, quantity | 12 |
| Total Ports, quantity | 12 |
Dimensions
| Height | 19 mm | 0.748031 in |
| Width | 202.5 mm | 7.97244 in |
| Depth | 207 mm | 8.14961 in |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A1 |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
