760252389 | EQP-2U-6X-MOD-NG4
Base Product: FACT-NG4-CHASSIS
- Available in:
- Australia/New Zealand
- EMEA

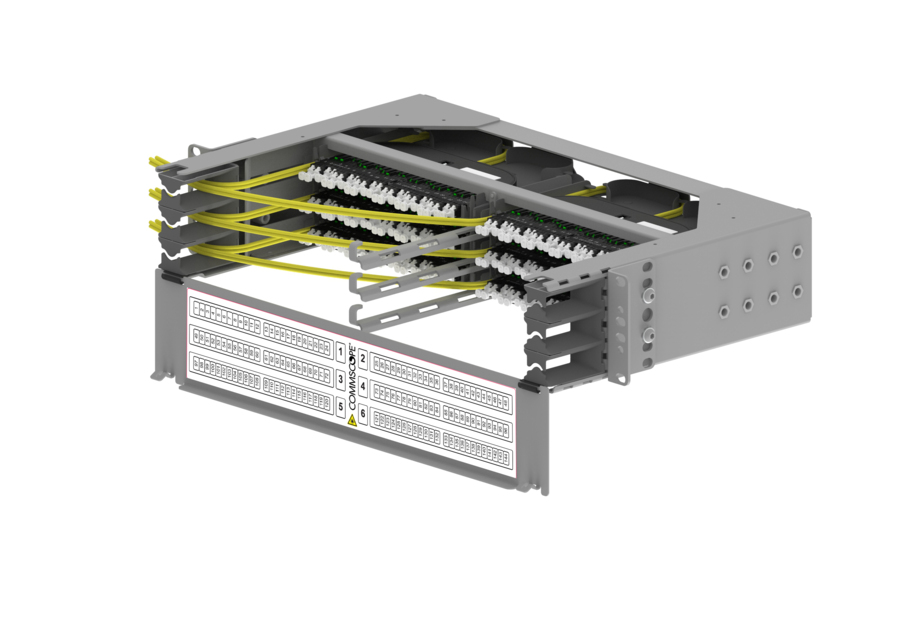

FACT® NG4 Fiber Equipment Chassis, 2U, 19-Inch, for holding up to 6 single high NG4 or right hand patch FACT modules
Features and Benefits
The Equipment Panel used in conjuction with NG4/FACT cabled modules (CMODs) and "FACT chassis right side installed" FACT-MPO modules. For fast and easy link creation in for example Equipment Racks.
° 19 inch/ETSI installation with multiple mounting depths
° 2 HU Panel
° up to 6 modules, 6x 12 SC = 72 connections or 6x 24 LC = 144 connections
° Full front access
° Front cable and patch cord management (all left; all right; left and right)
° CMOD breakout or MPO cable diameter up to 3.5mm
° Front door with label for individual port numbering
° 19 inch/ETSI installation with multiple mounting depths
° 2 HU Panel
° up to 6 modules, 6x 12 SC = 72 connections or 6x 24 LC = 144 connections
° Full front access
° Front cable and patch cord management (all left; all right; left and right)
° CMOD breakout or MPO cable diameter up to 3.5mm
° Front door with label for individual port numbering
Specifications
Product classification
| Regional Availability | Australia/New Zealand | EMEA |
| Portfolio | CommScope® |
| Product Type | Fiber VAM chassis | Fiber patch chassis |
| Product Brand | FACT® | NG4access® |
| Product Series | FACT | NG4 |
General Specifications
| Application | For use with FACT frames | Compatible with FIST-GR3-R frames when backplate is used (optional) |
| Color | Gray |
| Interface, front | Unloaded |
| Module/Adapter Pack Slots, quantity | 6 |
| Rack Type | FACT | FIST-GR3 |
| Rack Units | 2 |
| Shelf Movement | Fixed |
| Total Ports, quantity | 144 |
Dimensions
| Height | 88 mm | 3.465 in |
| Width | 430 mm | 16.929 in |
| Depth | 278 mm | 10.945 in |
Material Specifications
| Material Type | Steel |
Packaging and Weights
| Packaging quantity | 1 |
Product classification
| Regional Availability | Australia/New Zealand | EMEA |
| Portfolio | CommScope® |
| Product Type | Fiber VAM chassis | Fiber patch chassis |
| Product Brand | FACT® | NG4access® |
| Product Series | FACT | NG4 |
General Specifications
| Application | For use with FACT frames | Compatible with FIST-GR3-R frames when backplate is used (optional) |
| Color | Gray |
| Interface, front | Unloaded |
| Module/Adapter Pack Slots, quantity | 6 |
| Rack Type | FACT | FIST-GR3 |
| Rack Units | 2 |
| Shelf Movement | Fixed |
| Total Ports, quantity | 144 |
Dimensions
| Height | 88 mm | 3.465 in |
| Width | 430 mm | 16.929 in |
| Depth | 278 mm | 10.945 in |
Material Specifications
| Material Type | Steel |
Packaging and Weights
| Packaging quantity | 1 |
