64501107-01 | 6450 1 107-01
- Available in:
- Australia/New Zealand

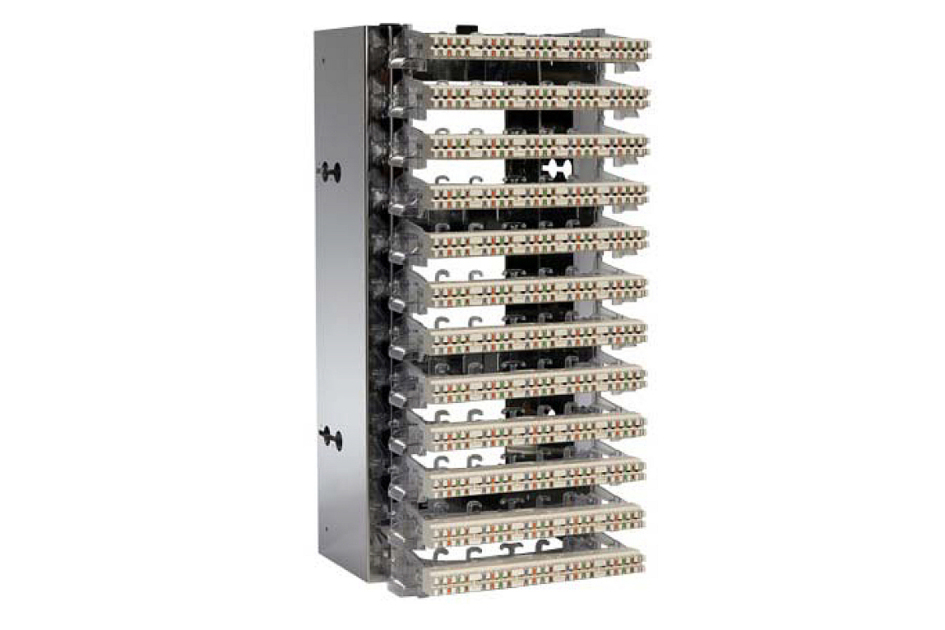

HighBand® Backmount frame kit loaded with12 category 6A, 20-pair modules
Specifications
Product classification
| Regional Availability | Australia/New Zealand |
| Product Type | Back mount frame kit |
| Product Brand | Highband® |
| Product Series | HighBand® |
General Specifications
| ANSI/TIA Category | 6A |
| Modules, quantity | 12 |
| Mounting | Backmount frames |
| Pairs, quantity | 240 |
| Termination Punchdowns, minimum | 200 times |
| Termination Tool | LSA-PLUS Punchdown tool |
| Termination Type | IDC |
| Transmission Standards | IEEE 802.3an | TIA/EIA-568 Cat 6A |
Dimensions
| Compatible Conductor Gauge, solid | 26–22 AWG |
| Compatible Conductor Gauge, stranded | 26–22 AWG |
Electrical Specifications
| Current Rating, maximum | 2.5 A |
| Insulation Resistance, minimum | 50 mOhm |
| Safety Voltage Rating | 150 Vac |
Material Specifications
| Contact Plating Material | Silver |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
Environmental Specifications
| Environmental Space | Indoor | Outdoor |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL 1863 |
Packaging and Weights
| Included | Label holder | Rear cable management |
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Regional Availability | Australia/New Zealand |
| Product Type | Back mount frame kit |
| Product Brand | Highband® |
| Product Series | HighBand® |
General Specifications
| ANSI/TIA Category | 6A |
| Modules, quantity | 12 |
| Mounting | Backmount frames |
| Pairs, quantity | 240 |
| Termination Punchdowns, minimum | 200 times |
| Termination Tool | LSA-PLUS Punchdown tool |
| Termination Type | IDC |
| Transmission Standards | IEEE 802.3an | TIA/EIA-568 Cat 6A |
Dimensions
| Compatible Conductor Gauge, solid | 26–22 AWG |
| Compatible Conductor Gauge, stranded | 26–22 AWG |
Electrical Specifications
| Current Rating, maximum | 2.5 A |
| Insulation Resistance, minimum | 50 mOhm |
| Safety Voltage Rating | 150 Vac |
Material Specifications
| Contact Plating Material | Silver |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
Environmental Specifications
| Environmental Space | Indoor | Outdoor |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL 1863 |
Packaging and Weights
| Included | Label holder | Rear cable management |
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
