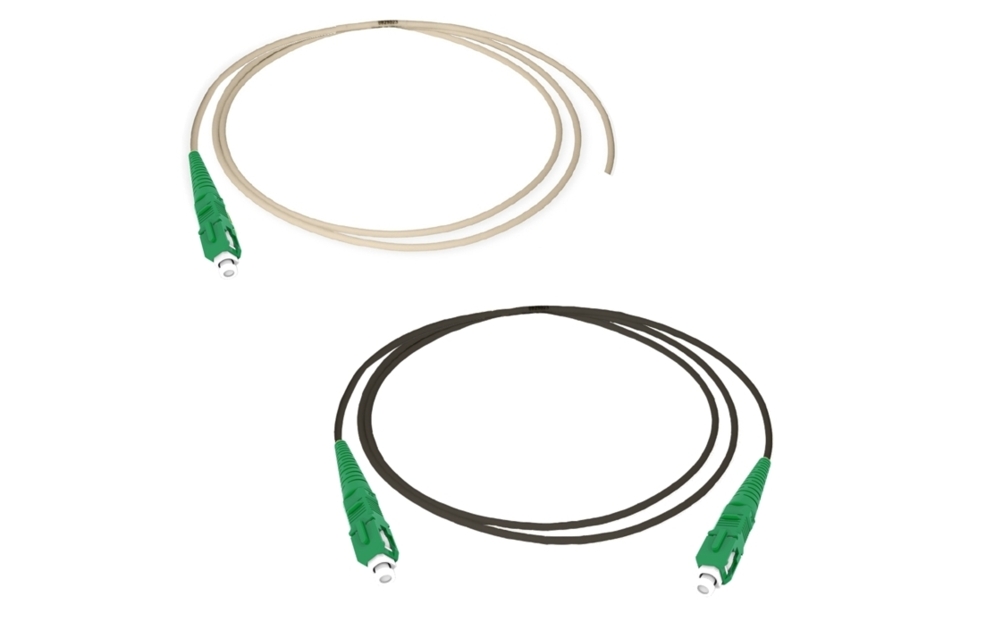

Fiber Optic Drop Cable Assembly for indoor/outdoor applications

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of FID by selecting options

Cable Assembly Length:

Jacket Color:

Interface, Connector A:

Interface, Connector B:

Cable Type:

Specifications

Product classification

Regional Availability	EMEA
Product Type	Fiber drop cable assembly
Product Series	FID

General Specifications

Cable Type

Stapleable - Round

Dimensions

Cable Outer Diameter

3.0 mm (0.12 in)

Dimension Drawing

Click on image to enlarge.

Ordering Tree

Click on image to enlarge.

Material Specifications

Jacket Material

Low Smoke Zero Halogen (LSZH)

Optical Specifications

Fiber Mode	Singlemode
Fiber Type	G.657.A2, TeraSPEED®

Environmental Specifications

Installation temperature	-20 °C to -60 °C (-4 °F to -76 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
EN50575 CPR Cable EuroClass Fire Performance	Dca
Environmental Space	Indoor/Outdoor
Qualification Standards	IEC 60794-1-2

Packaging and Weights

Packaging quantity

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
