760245212 | OTE200-06MH-18-S12-B-W

Base Product: OTE

Available in:
Asia
Australia/New Zealand
EMEA
Latin America

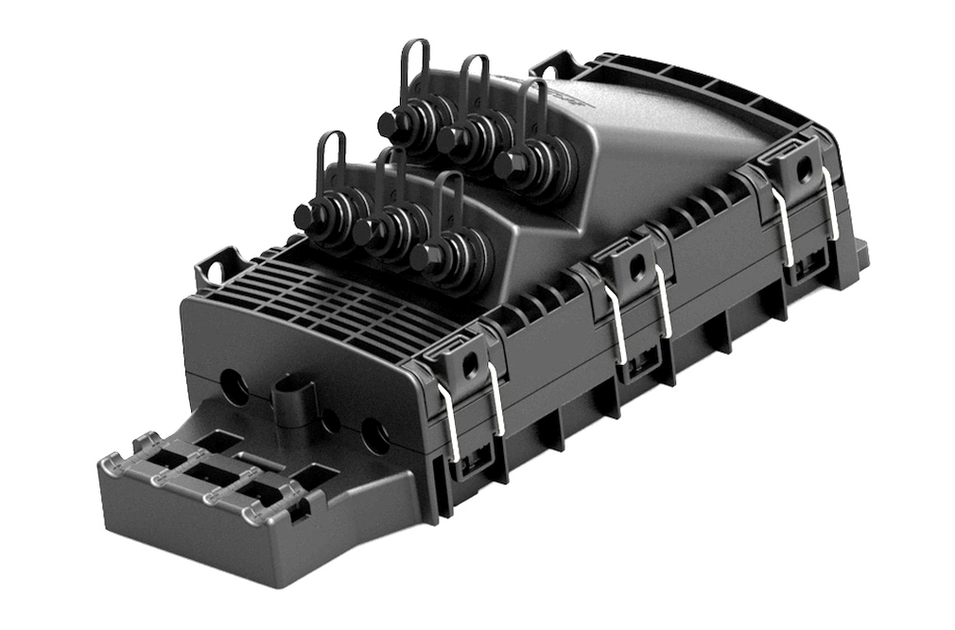

Mini-OTE 200-Series, Optical Terminal Enclosure, 6-port full-size connector, 1x8 splitter, black, wall mount

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Optical Terminal Enclosures incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
Functionality to splice and store feeder cable in the field with the possibility to splice in the field two extra branch cables
Hardened adapters are factory-terminated and environmentally sealed to ensure rapid plug-and play drop cable installations
Integrated external cable fixation guarantees easy, fast and reliable cable manipulations

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America
Product Type	Access terminal, without splitter/tap
Product Series	Mini-OTE 200

General Specifications

Cable Type	No cable (stubless)
Cable, quantity	0
Distribution Type	1 x 8 splitter
Enclosure Color	Black
Mounting	Handhole \| Pole \| Wall
Port Type	Hardened full-size SC/APC
Port, quantity	6
Split Ratio	Symmetrical
Splitter, quantity	1
Stub Type	No stub

Dimensions

Height	358.5 mm \| 14.114 in
Width	166 mm \| 6.535 in
Depth	129.3 mm \| 5.091 in
Cable Length, stub	0 ft (0 m)

Dimension Drawing

Click on image to enlarge.

Ordering Tree

Click on image to enlarge.

Material Specifications

Enclosure Material Type

Glass filled polypropylene (GF-PP)

Optical Specifications

Fiber Type	G.652.D
Operating Wavelength Range	1260 – 1635 nm
Attenuation Terminal Connectors, maximum	0.4 dB
Insertion Loss, Terminal Connector, typical	0.16 dB
Return Loss, Connector, minimum	65 dB

Environmental Specifications

Operating Temperature	-40 ºC to +65 ºC (-40 ºF to +149 ºF)
Relative Humidity	5%–100%, condensing
Environmental Space	Above ground \| Below ground \| Buried
Qualification Standards	IEC 60529, IP68 + 3 m waterhead
UV Resistance	UV stabilized

Packaging and Weights

Included	Cable termination unit (2) \| Enclosure (1) \| Fiber pigtail cassette (1) \| Splice Cassette (2)
Packaging quantity	1
Packaging Type	Box \| Carton

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
