760252499 | MDU-TAP-18-NN/NN

Base Product: MDU-TAP

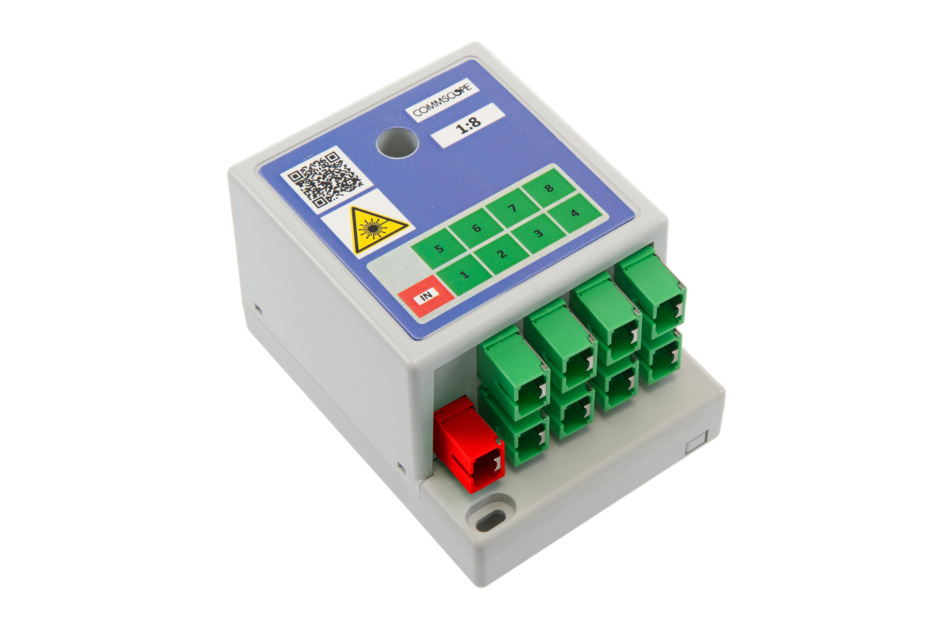

Multi Dwelling unit Terminal access point with SC-APC shuttered connectors, splitter 1:8

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Extremely small form reduces space requirments needed within the building
  • Different tap ratio’s allows networks to be optimized to reduce loss and improve reach
  • Pre-installed splitters protected and sealed
  • Suitable for in-building environment
  • Utilizes shuttered SC/APC adapters providing a safe working environment
  • In-molded color coded label for identification of tap ratio with possiblility of an QR code
  • Optional cable attachment for strength relief and aditional cover for the adapters/connectors
  • Plug and play solution allows for reduced installation skill requirments and greatly improves speed of installation

Product classification

Portfolio CommScope®
Product Type MDU tap

General Specifications

Functionality Patching | Splitting
Adapter Type Output (8) | Input (1)
Adapters, quantity 9
Color Light gray
Distribution Type 8-port tap
Interface SC/APC
Mounting Wall
Split Ratio Terminating

Dimensions

Height 100 mm | 3.937 in
Width 75 mm | 2.953 in
Depth 60 mm | 2.362 in

Material Specifications

Material Type Acrylonitrile butadiene styrene (ABS)

Optical Specifications

Fiber Mode Singlemode

Environmental Specifications

Environmental Space Indoor | Riser
Flammability Rating UL 94 V-0

Packaging and Weights

Height, packed 120 mm | 4.724 in
Width, packed 170 mm | 6.693 in
Depth, packed 295 mm | 11.614 in
Packaging quantity 8
Packaging Type Box | Carton
