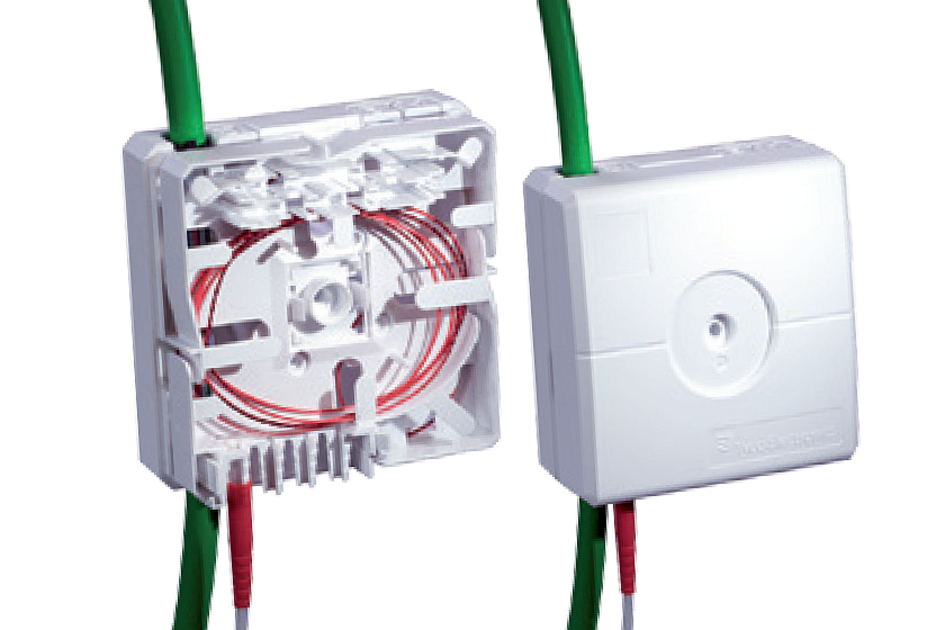

IFDB Fiber Optic Wall Box with Universal splice holder for up to 4 mechanical or SMOUV splices
Features and Benefits
- Allows splicing those fibers from an indoor riser cable to the individual drops
- Allows fibers from certain riser cables to be broken out without interrupting the strength member
- Separate storage of un-connected fibers from spliced drop fibers
- Compatible with mechanical, SMOUV and ANT splice protectors
- In-line and butt configuration possible for main riser cable
Specifications
Product Classification
| Regional Availability | EMEA |
| Product Type | Fiber wall box |
| Product Series | IFDB |
General Specifications
| Functionality | Splicing |
| Adapters, quantity | 0 |
| Color | Light gray |
| Front Cover Type | Screw-on |
| Interface | Splicing only |
| Mounting | Floor | Wall |
| Splice Tray Chip Type | Mechanical | SMOUV |
| Splicing Capacity, maximum | 4 |
Dimensions
| Height | 80 mm | 3.15 in |
| Width | 80 mm | 3.15 in |
| Depth | 35 mm | 1.378 in |
Material Specifications
| Material Type | Thermoplastic |
Optical Specifications
| Fiber Mode | Singlemode |
Environmental Specifications
| Environmental Space | Indoor |
| Flammability Rating | UL 94 V-0 |
| Qualification Standards | IEC 60529, IP30 |
Packaging and Weights
| Packaging quantity | 20 |
| Packaging Type | Bag | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
