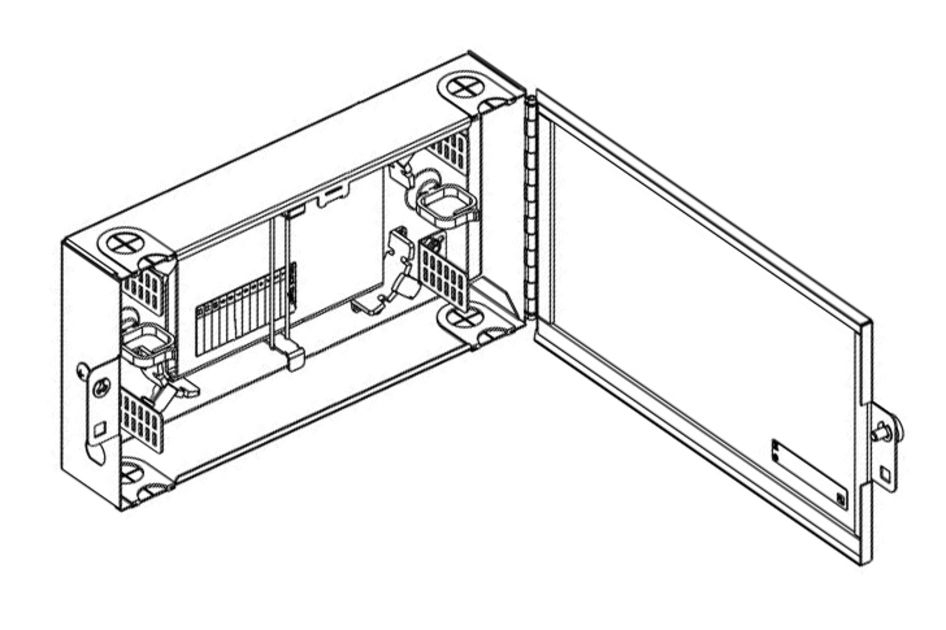

WSC Wall Splice Cabinet for MDU applications, indoor/outdoor, for up to 12 fibers, includes 1 splice tray with heat shrink fusion, no key lock
Specifications
Product classification
| Regional Availability | North America |
| Portfolio | CommScope® |
| Product Type | Fiber wall box |
General Specifications
| Functionality | Splicing |
| Access | Front |
| Enclosure Color | Putty white |
| Front Cover Type | Hinged at top |
| Interface | Splicing only |
| Lock Type | Locking bolt |
| Mounting | Wall |
| Splice Trays | Included |
Dimensions
| Height | 345 mm | 13.583 in |
| Width | 185 mm | 7.283 in |
| Depth | 65 mm | 2.559 in |
Environmental Specifications
| Environmental Space | Outdoor |
| Qualification Standards | NEMA, Type 4 |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Regional Availability | North America |
| Portfolio | CommScope® |
| Product Type | Fiber wall box |
General Specifications
| Functionality | Splicing |
| Access | Front |
| Enclosure Color | Putty white |
| Front Cover Type | Hinged at top |
| Interface | Splicing only |
| Lock Type | Locking bolt |
| Mounting | Wall |
| Splice Trays | Included |
Dimensions
| Height | 345 mm | 13.583 in |
| Width | 185 mm | 7.283 in |
| Depth | 65 mm | 2.559 in |
Environmental Specifications
| Environmental Space | Outdoor |
| Qualification Standards | NEMA, Type 4 |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
