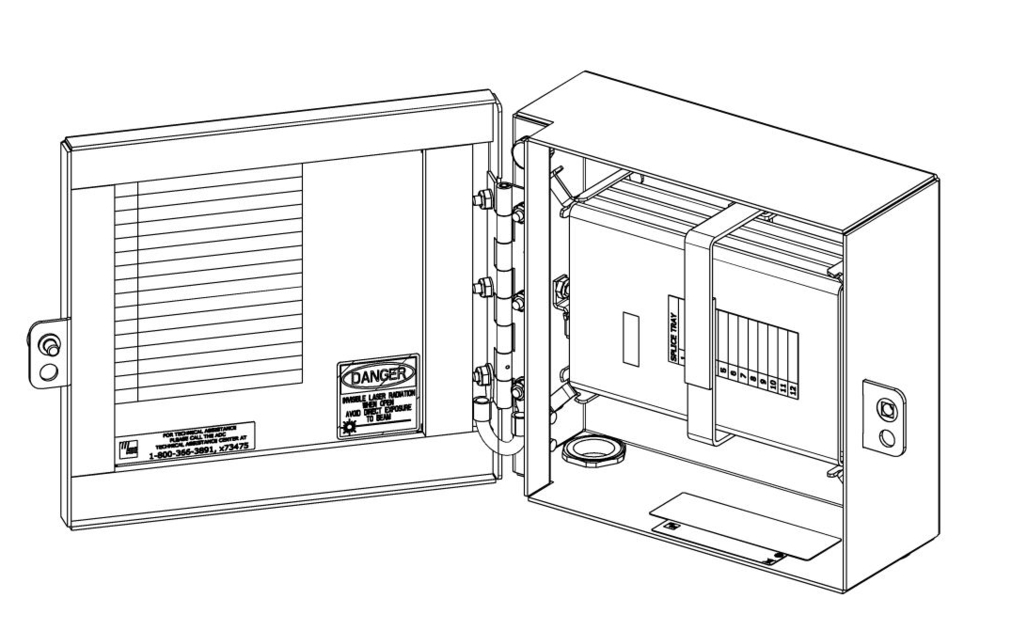

WSC Wall Splice Cabinet for MDU applications, indoor/outdoor, for up to 48 fibers, includes 4 splice trays with heat shrink fusion, no key lock
Specifications
Product Classification
| Regional Availability | North America |
| Portfolio | CommScope® |
| Product Type | Fiber wall box |
General Specifications
| Functionality | Splicing |
| Access | Front |
| Cable Color | White |
| Cable Type | Pigtails - Stranded |
| Door, quantity | 1 |
| Enclosure Color | Putty white |
| Front Door Type | Single hinged |
| Interface | Splicing only |
| Lock Type | Locking bolt |
| Mounting | Wall |
| Splice Trays | Included |
| Splicing Type | Heat shrink |
Dimensions
| Height | 273 mm | 10.748 in |
| Width | 255 mm | 10.039 in |
| Depth | 89 mm | 3.504 in |
Environmental Specifications
| Environmental Space | Outdoor |
| Qualification Standards | NEMA, Type 4 |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Regional Availability | North America |
| Portfolio | CommScope® |
| Product Type | Fiber wall box |
General Specifications
| Functionality | Splicing |
| Access | Front |
| Cable Color | White |
| Cable Type | Pigtails - Stranded |
| Door, quantity | 1 |
| Enclosure Color | Putty white |
| Front Door Type | Single hinged |
| Interface | Splicing only |
| Lock Type | Locking bolt |
| Mounting | Wall |
| Splice Trays | Included |
| Splicing Type | Heat shrink |
Dimensions
| Height | 273 mm | 10.748 in |
| Width | 255 mm | 10.039 in |
| Depth | 89 mm | 3.504 in |
Environmental Specifications
| Environmental Space | Outdoor |
| Qualification Standards | NEMA, Type 4 |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant/Exempted |
