RFP

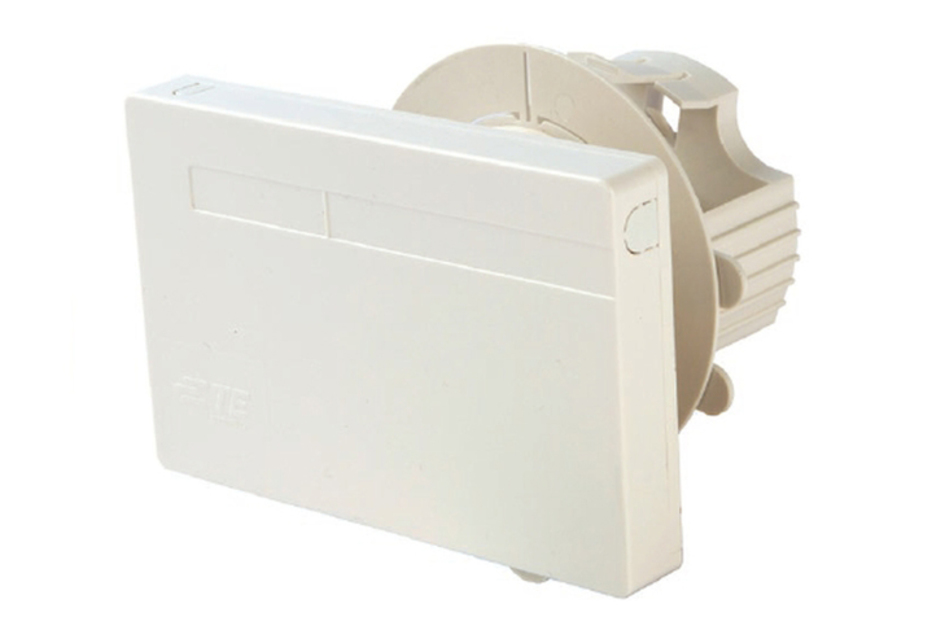

CommScope's Rapid Face Plate provides a quick and simple solution to deploying optical fibre within a customer’s premises. Utilising CommScope's patented rapid reel technology in conjunction with 1.2mm micro cable technology, CommScope offers a full plug-and-play customer termination solution for in-building fibre deployments.

The Rapid Face Plate incorporates a unique spooling system for integrated cable storage, with the ability to store up to 30 meters of 1.2mm cable behind a low profile wall outlet. The 1.2mm cable is terminated to a low loss SCA connector terminated at the outer end with a small profile dust cap / hauling eye solution for internal cable hauling. The inner end of the cable is presented within a low loss SCA adapter with integrated laser safety shutter.

CommScope's Rapid Face Plate can be reconfigured to provide a face plate solution for use inside the customer premises, or used as an MDU test point located within a common hallway inside the building by re-orientating the SCA adapter within the face plate.


BENEFITS

• Greatly reduces time to install and removes craft sensitivity
• Removes the need for field termination at time of customer connect
• Reduces inventory items, utilising only standard items
• Removes the need for extensive site survey
• Standard Australian GPO foot print compatible with standard mounting practices
• Simple installation technique, no specialist tools required
• Compatible with muitl fibre pass through cables up to 8mm diameter
• Cables up to 4.8mm* can be accommodated within the face plate

FEATURES

• Up to 30m of internal cable storage facilit
• Integrated SCA dust cap / hauling eye
• Suitable for cavity mount installations or surface mount installation
• 1.2mm G657.B3 micro cable technology
• Compatible with Australian GPO mounting practices
• Accommodates up to 2F splice tray incorporated into base of the face plate
• Integrated cable pass-through functionality
• Standalone face plate or supplied with 30 or 60m of pre-terminated 1.2mm cable
