SFP
Base Product
- Available in:
- Asia
- Australia/New Zealand
- Latin America
- North America

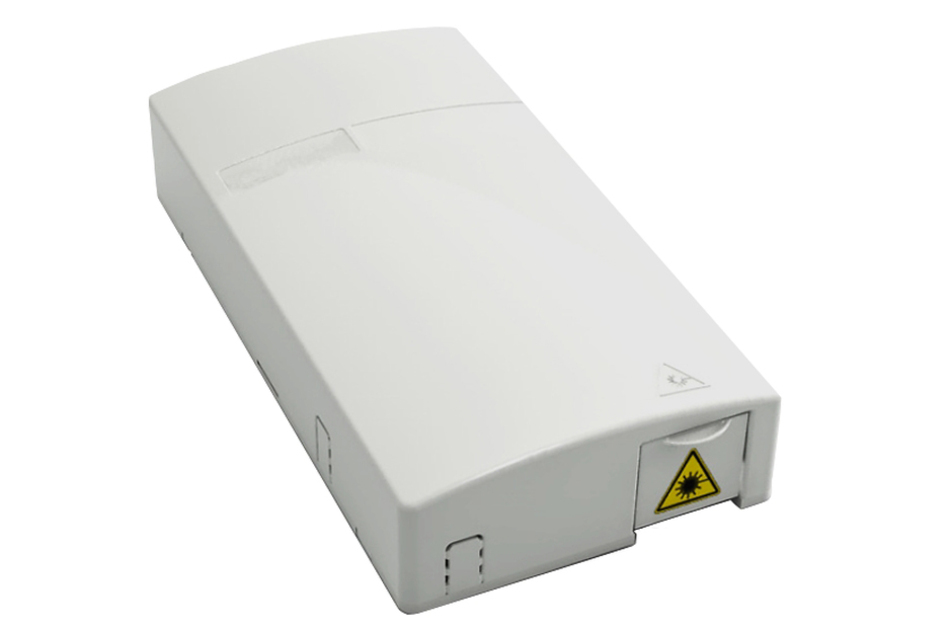

Fiber Optic Easy Faceplate, SC style adapter
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
The SFP wall outlet is a point of termination of the optical connection cable in a residential environment.In its tray it allows to accommodate two or four fusion splices and store their corresponding fibers.
Features and Benefits
Features and Benefits
- Compact design
- SC Adapter(s) with shutter and laser warning logo
- Splicing to factory installed pigtails if applicable
- Possibility to splice cable to cable
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | Latin America | North America |
| Product Type | Fiber wall outlet |
| Product Series | SFP |
General Specifications
| Color | White |
| Cover Type | Snap-on cover |
| Interface Type | SC/APC | SC/UPC |
| Mounting | Wall mount |
Dimensions
| Height | 98.044 mm | 3.86 in |
| Depth | 20.066 mm | 0.79 in |
| Length | 50.038 mm | 1.97 in |
Material Specifications
| Material Type | LSZH thermoplastic |
Optical Specifications
| Fiber Mode | Singlemode |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Environmental Space | Indoor |
Packaging and Weights
| Packaging quantity | 1 |
Product classification
| Regional Availability | Asia | Australia/New Zealand | Latin America | North America |
| Product Type | Fiber wall outlet |
| Product Series | SFP |
General Specifications
| Color | White |
| Cover Type | Snap-on cover |
| Interface Type | SC/APC | SC/UPC |
| Mounting | Wall mount |
Dimensions
| Height | 98.044 mm | 3.86 in |
| Depth | 20.066 mm | 0.79 in |
| Length | 50.038 mm | 1.97 in |
Material Specifications
| Material Type | LSZH thermoplastic |
Optical Specifications
| Fiber Mode | Singlemode |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Environmental Space | Indoor |
Packaging and Weights
| Packaging quantity | 1 |
