4110273 | 2312V WTRL 1/2" PLEN TRUNK

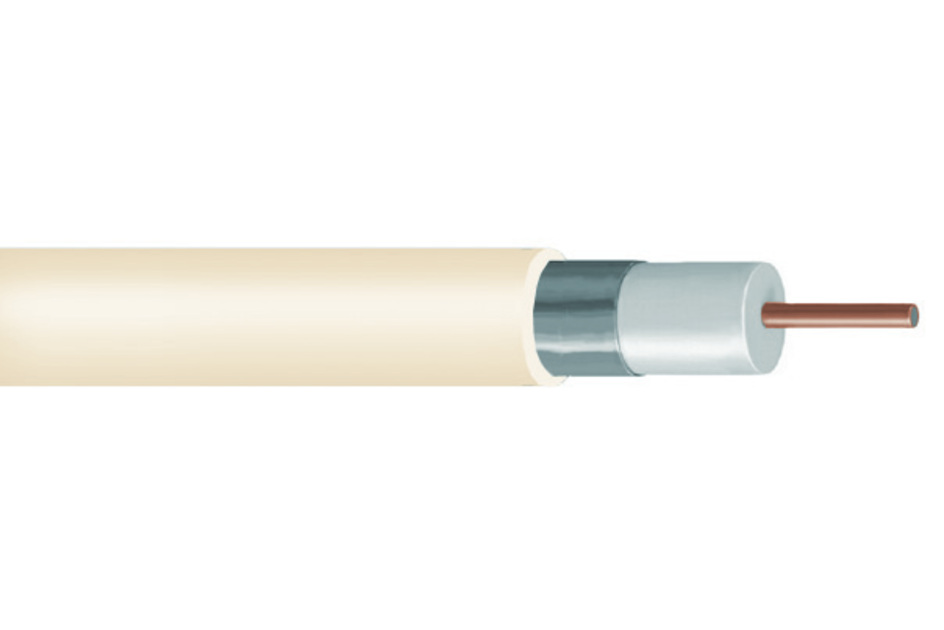

75 Ohm P3® 500 JCAP 1/2" Plenum Trunk and Distribution Cable, white flame retardant PVC jacket
Specifications
Product classification
| Product Type | Coaxial hardline cable |
| Product Brand | P3® |
| Warranty | One year |
General Specifications
| Cable Type | 500 Series |
| Construction Type | Swaged |
| Jacket Color | White |
| Short Description | P3 500 JCAP (2312V) |
Electrical Specifications
| Capacitance Tolerance | ±1.0 pF/ft |
| Characteristic Impedance Tolerance | ±2 ohm |
| dc Resistance Note | Nominal values based on a standard condition of 20 °C (68 °F) |
| Structural Return Loss | 20 dB @ 450–1000 MHz | 24 dB @ 5–450 MHz |
Electrical Performance
| Click on image to enlarge. |
Material Specifications
| Center Conductor Material | Copper-clad aluminum |
| Dielectric Material | FFEP |
| Jacket Material | Fire retardant PVC |
| Outer Conductor Material | Aluminum |
Environmental Specifications
| Environmental Space | Indoor | Plenum |
| Flame Test Listing | CATVP | CMP | NEC Article 820 |
Packaging and Weights
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Product Type | Coaxial hardline cable |
| Product Brand | P3® |
| Warranty | One year |
General Specifications
| Cable Type | 500 Series |
| Construction Type | Swaged |
| Jacket Color | White |
| Short Description | P3 500 JCAP (2312V) |
Electrical Specifications
| Capacitance Tolerance | ±1.0 pF/ft |
| Characteristic Impedance Tolerance | ±2 ohm |
| dc Resistance Note | Nominal values based on a standard condition of 20 °C (68 °F) |
| Structural Return Loss | 20 dB @ 450–1000 MHz | 24 dB @ 5–450 MHz |
Material Specifications
| Center Conductor Material | Copper-clad aluminum |
| Dielectric Material | FFEP |
| Jacket Material | Fire retardant PVC |
| Outer Conductor Material | Aluminum |
Environmental Specifications
| Environmental Space | Indoor | Plenum |
| Flame Test Listing | CATVP | CMP | NEC Article 820 |
Packaging and Weights
| Packaging Type | Reel |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
