530092703 | P3® 750 JCAT G

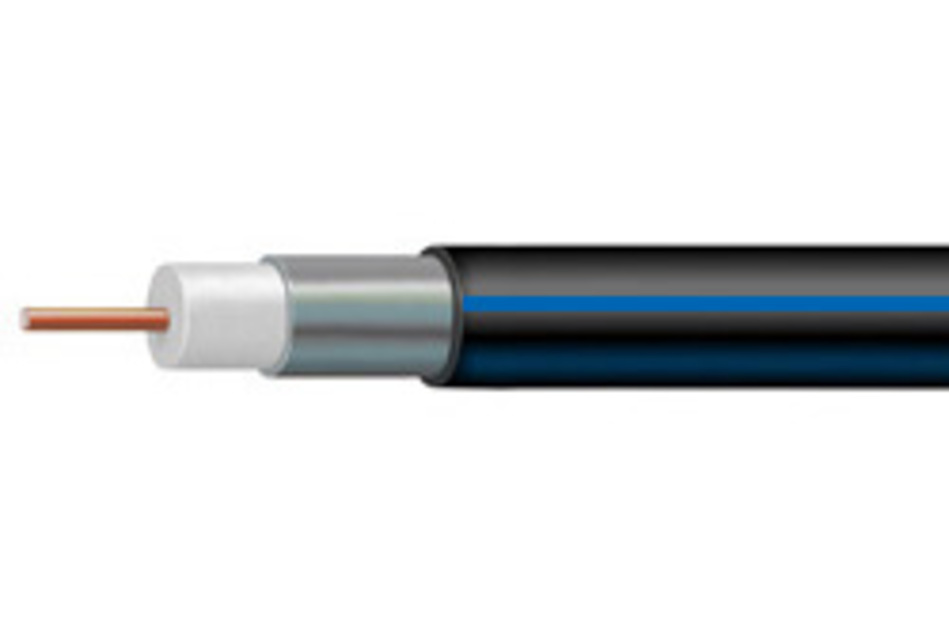

75 Ohm P3® Trunk and Distribution Cable, black PE jacket with co-extruded green stripe

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product classification

Cable Type	750 Series
Construction Type	Swaged
Jacket Color	Black with co-extruded green stripe
Short Description	P3 750 JCAT B SM PR2171

Cable Length	762 m \| 2500 ft
Diameter Over Center Conductor, nominal	4.242 mm \| 0.167 in
Diameter Over Dielectric, nominal	17.323 mm \| 0.682 in
Diameter Over Jacket, nominal	20.828 mm \| 0.82 in
Diameter Over Outer Conductor, nominal	19.05 mm \| 0.75 in
Jacket Thickness, nominal	0.889 mm \| 0.035 in
Outer Conductor Thickness, nominal	0.864 mm \| 0.034 in

Capacitance	50.197 pF/m \| 15.3 pF/ft
Capacitance Tolerance	±1.0 pF/ft
Characteristic Impedance	75 ohm
Characteristic Impedance Tolerance	±2 ohm
dc Resistance Note	Nominal values based on a standard condition of 20 °C (68 °F)
dc Resistance, Inner Conductor, nominal	1.87 ohms/km \| 0.57 ohms/kft
dc Resistance, Loop, nominal	2.493 ohms/km \| 0.76 ohms/kft
dc Resistance, Outer Conductor, nominal	0.623 ohms/km \| 0.19 ohms/kft
Jacket Spark Test Voltage	5000 Vac
Nominal Velocity of Propagation (NVP)	87 %
Operating Frequency Band	5–3000 MHz
Structural Return Loss	24 dB @ 1003–1218 MHz \| 24 dB @ 1219–1794 MHz \| 30 dB @ 5–1002 MHz
Structural Return Loss, Grade N	≥30 dB @ 5–1002 MHz \| ≥24 dB @ 1003–1218 MHz \| ≥24 dB @ 1219–1794 MHz

Click on image to enlarge.

Minimum Bend Radius, bonded	152.4 mm \| 6 in
Pulling Tension, maximum	306.175 kg \| 675 lb

Environmental Space

Aerial

Packaging Type	Reel
Weight, gross	386.922 kg/km \| 260 lb/kft

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
